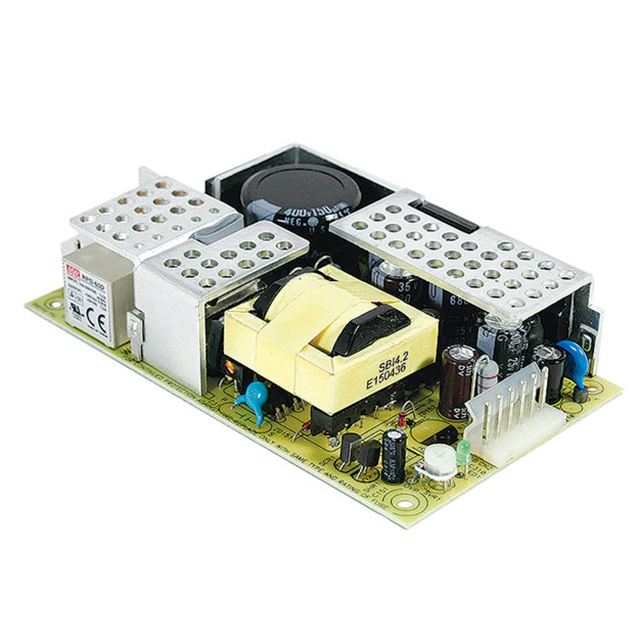

RPD-65 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 12V 5V 60W
| Part | Minimum Load Required | Applications | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Isolation | Current - Output 2 | Voltage - Output 1 | Mounting Type | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Efficiency | Type | Features | Voltage - Input [Max] | Voltage - Input [Min] | Approval Agency | Voltage - Output 2 | Power (Watts) | Number of Outputs | Current - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | ITE (Commercial) | 60 °C | -20 °C | 3000 V | 1.2 A | 12 V | Chassis Mount | 29 mm | 5 " | 76 mm | 1.14 in | 2.99 in | 127 mm | 79 % | Open Frame | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | CB CE cURus TUV | 5 V | 60 W | 2 | 4.5 A | |
MEAN WELL USA Inc. | ITE (Commercial) | 60 °C | -20 °C | 3000 V | 1.2 A | 24 V | Chassis Mount | 29 mm | 5 " | 76 mm | 1.14 in | 2.99 in | 127 mm | 81 % | Open Frame | Adjustable Output Universal Input | 264 VAC 370 VDC | 90 VAC 127 VDC | CB CE cURus TUV | 5 V | 60 W | 2 | 2.25 A |
