HLMP-6300 Series

Catalog

LED RED DIFFUSED GULL WING SMD

Part	Package / Case	Lens Color	Wavelength - Dominant	Mounting Type	Supplier Device Package	Viewing Angle [custom]	Current - Test	Size / Dimension [y]	Size / Dimension [x]	Height (Max) [Max]	Lens Style	Millicandela Rating	Color	Lens Size [diameter]	Lens Transparency	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Peak	Package / Case
Broadcom Limited HLMP-6300-F0011	2-SMD Gull Wing	Red	626 nm	Surface Mount	Gull Wing	90 °	10 mA	2.21 mm	2.08 mm	2.92 mm	Round with Domed Top	10 mcd	Red	1.78 mm	Diffused	1.8 V	Standard	635 nm
Broadcom Limited HLMP-6300-KL000	Axial Flat Leads	Red	626 nm	Axial Through Hole	Axial	90 °	10 mA	2.21 mm	2.08 mm	2.92 mm	Round with Domed Top	13.15 mcd	Red	1.78 mm	Diffused	1.8 V	Standard	635 nm

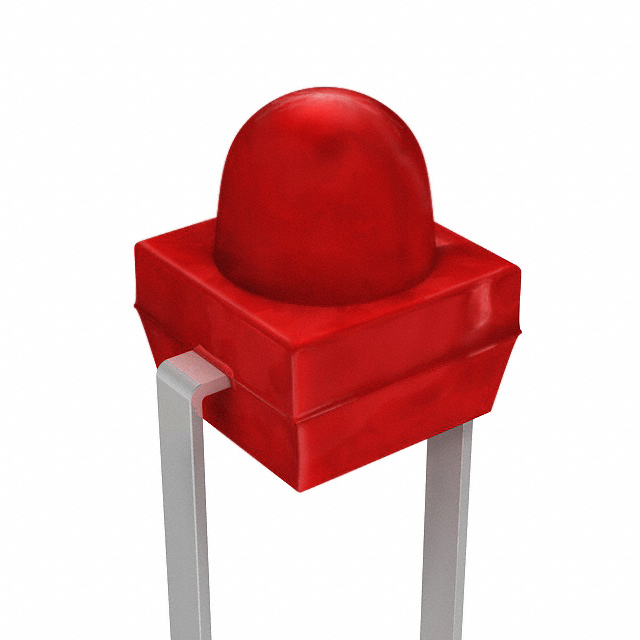

Broadcom Limited HLMP-6300-F001S	Axial Right Angle Bend	Red	626 nm	Through Hole	Axial	90 °	10 mA	2.21 mm	2.08 mm	2.92 mm	Round with Domed Top	10 mcd	Red	1.78 mm	Diffused	1.8 V	Standard	635 nm	2.54 mm
