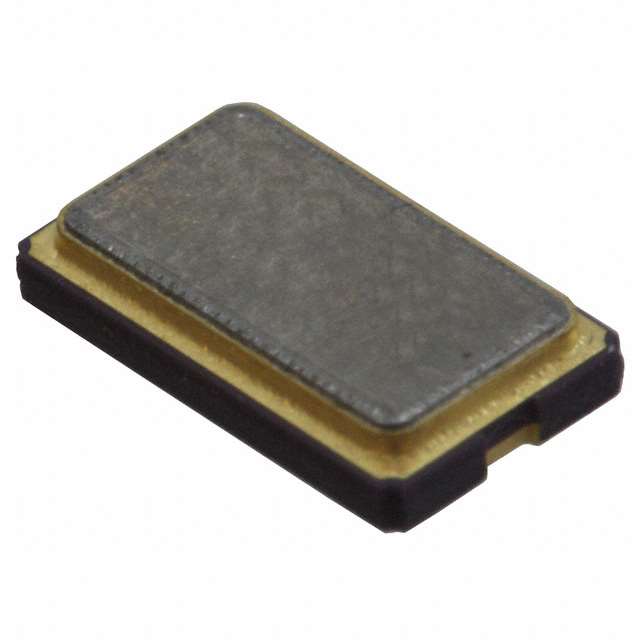

ECX-64A Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 16MHZ 18PF 50PPM -40C +85C

Part	Mounting Type	Type	Frequency	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Mode	Frequency Tolerance	Frequency Stability	ESR (Equivalent Series Resistance)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Supplier Device Package	Supplier Device Package [x]	Supplier Device Package [y]	Package / Case	Load Capacitance	Operating Temperature [Max]	Operating Temperature [Min]
ECS Inc. ECS-160-18-23A-EN-TR	Surface Mount	MHz Crystal	16 MHz	0.043 "	1.1 mm	Fundamental	30 ppm	50 ppm	60 Ohms	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	18 pF	85 °C	-40 C
ECS Inc. ECS-200-S-23A-TR	Surface Mount	MHz Crystal	20 MHz	0.043 "	1.1 mm	Fundamental	30 ppm	50 ppm	30 Ohm	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead		70 °C	-10 °C
ECS Inc. ECS-120-20-23A-TR	Surface Mount	MHz Crystal	12 MHz	0.043 "	1.1 mm	Fundamental	30 ppm	50 ppm	80 Ohm	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	20 pF	70 °C	-10 °C
ECS Inc. ECS-240-18-23A-JGN-TR	Surface Mount	MHz Crystal	24 MHz	0.043 "	1.1 mm	Fundamental	20 ppm	30 ppm	30 Ohm	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	18 pF	85 °C	-40 C
ECS Inc. ECS-120-18-23A-JGN-TR	Surface Mount	MHz Crystal	12 MHz	0.043 "	1.1 mm	Fundamental	20 ppm	30 ppm	80 Ohm	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	18 pF	85 °C	-40 C
ECS Inc. ECS-143-18-23A-JGN-TR	Surface Mount	MHz Crystal	14.31818 MHz	0.043 "	1.1 mm	Fundamental	20 ppm	30 ppm	80 Ohm	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	18 pF	85 °C	-40 C
ECS Inc. ECS-143-18-23A-EN-TR	Surface Mount	MHz Crystal	14.31818 MHz	0.043 "	1.1 mm	Fundamental	30 ppm	50 ppm	80 Ohm	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	18 pF	85 °C	-40 C
ECS Inc. ECS-196-20-23A-TR	Surface Mount	MHz Crystal	19.6608 MHz	0.043 "	1.1 mm	Fundamental	30 ppm	50 ppm	60 Ohms	0.236 in	6 mm	0.138 in	3.5 mm	2-SMD	6	3.5	2-SMD No Lead	20 pF	70 °C	-10 °C
