C4D0606 Series
Manufacturer: Electroswitch
Beta
⌘K

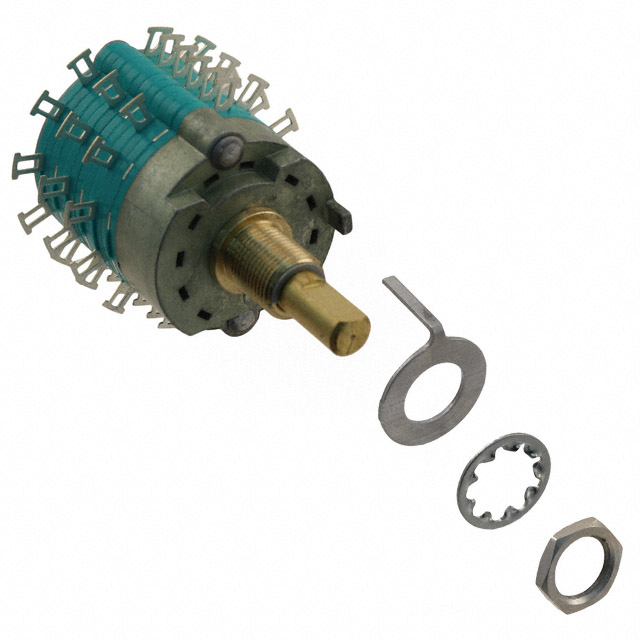

SWITCH ROTARY 2-6POS 300MA 125V
| Part | Panel Cutout Dimensions [diameter] | Number of Poles per Deck | Depth Behind Panel [z] | Current Rating (Amps) | Contact Finish | Mounting Type | Voltage Rating - DC | Voltage Rating - AC | Number of Positions [Min] | Number of Positions [Max] | Actuator Length [x] | Angle of Throw | Number of Decks | Actuator Type | Contact Material | Circuit per Deck | Index Stops | Termination Style | Contact Timing |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Electroswitch | 9.78 mm | 2 | 34.54 mm | 300 mA 500 mA | Silver | Panel Mount | 28 V | 125 V | 2 | 6 | 0.5 in | 30 ° | 3 | Flatted (6.35mm Dia) | Brass | DP6T | Adjustable | Solder Lug | Non-Shorting (BBM) |
