EM2118 Series

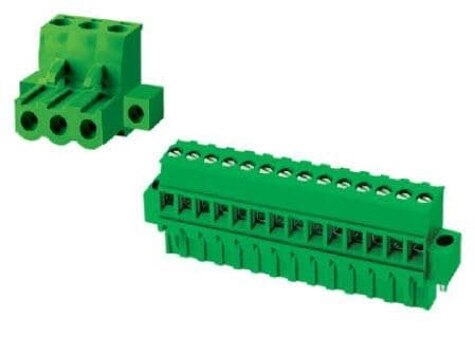

Pluggable Terminal Blocks 7P EM2118 Series Vert Left
Manufacturer: Eaton - Electronics Division
Catalog
Pluggable Terminal Blocks 7P EM2118 Series Vert Left
Beta
⌘K
Pluggable Terminal Blocks 7P EM2118 Series Vert Left
Pluggable Terminal Blocks 7P EM2118 Series Vert Left
Pluggable Terminal Blocks 7P EM2118 Series Vert Left
| Part | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - AWG [Max] | Voltage - UL | Color | Current - UL | Termination Style | Number of Levels | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Positions Per Level [custom] | Features | Contact Mating Finish | Type | Mounting Type | Plug Wire Entry | Pitch | Pitch | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Eaton - Electronics Division | 12 AWG | 24 AWG | 300 V | Green | 16 A | Screw | 1 | -55 C | 105 ░C | 7 | 7 | Mating Flange Retention Latches (Non-Wire Side) | Tin | Plug Female Sockets | Free Hanging (In-Line) | 90 ° | 5.08 mm | 0.2 in | 0.25 mm² | 4 mm² |
