001032 Series

Manufacturer: Molex

Catalog

CONN HEADER VERT 9POS 5.08MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Shape	Style	Insulation Height	Insulation Height	Contact Finish - Post	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Length - Post	Contact Length - Post	Fastening Type	Material Flammability Rating	Contact Type	Termination	Pitch - Mating	Pitch - Mating	Insulation Material	Number of Positions Loaded	Mounting Type	Overall Contact Length	Overall Contact Length	Insulation Color	Number of Positions	Contact Material
Molex 0010321091	Automotive General Purpose Industrial Medical Telecommunications	200 µin	5.08 µm	Square	Board to Cable/Wire	0.508 in	12.9 mm	Tin	1	5.08 µm	200 µin	Header	0.419 in	10.65 mm	Shrouded - 1 Wall	0.142 in	3.6 mm	Friction Lock	UL94 V-2	Male Pin	Solder	0.2 "	5.08 mm	Nylon 6/6 Polyamide (PA66)	All	Through Hole	0.687 in	17.45 mm	Natural	9	Brass

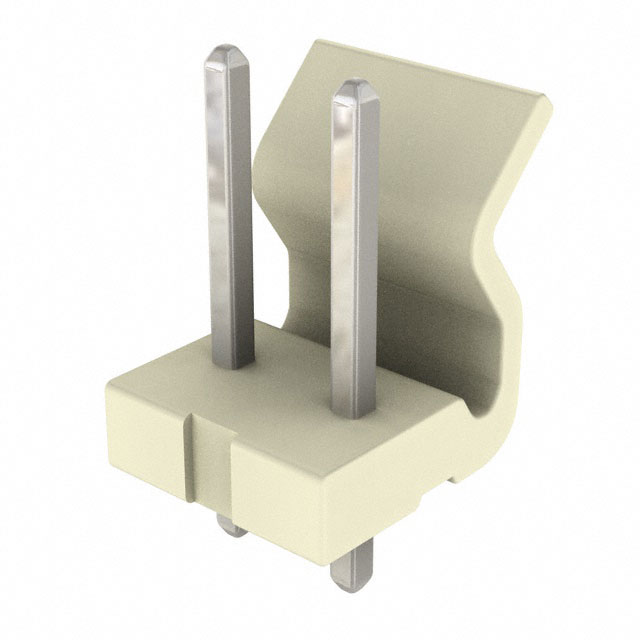

Molex 0010321021	Automotive General Purpose Industrial Medical Telecommunications	200 µin	5.08 µm	Square	Board to Cable/Wire	0.508 in	12.9 mm	Tin	1	5.08 µm	200 µin	Header	0.419 in	10.65 mm	Shrouded - 1 Wall	0.142 in	3.6 mm	Friction Lock	UL94 V-2	Male Pin	Solder	0.2 "	5.08 mm	Nylon 6/6 Polyamide (PA66)	All	Through Hole	0.687 in	17.45 mm	Natural	2	Brass
Molex 0010321051	Automotive General Purpose Industrial Medical Telecommunications	200 µin	5.08 µm	Square	Board to Cable/Wire	0.508 in	12.9 mm	Tin	1	5.08 µm	200 µin	Header	0.419 in	10.65 mm	Shrouded - 1 Wall	0.142 in	3.6 mm	Friction Lock	UL94 V-2	Male Pin	Solder	0.2 "	5.08 mm	Nylon 6/6 Polyamide (PA66)	All	Through Hole	0.687 in	17.45 mm	Natural	5	Brass
Molex 0010321081	Automotive General Purpose Industrial Medical Telecommunications	200 µin	5.08 µm	Square	Board to Cable/Wire	0.508 in	12.9 mm	Tin	1	5.08 µm	200 µin	Header	0.419 in	10.65 mm	Shrouded - 1 Wall	0.142 in	3.6 mm	Friction Lock	UL94 V-2	Male Pin	Solder	0.2 "	5.08 mm	Nylon 6/6 Polyamide (PA66)	All	Through Hole	0.687 in	17.45 mm	Natural	8	Brass
Molex 0010321101	Automotive General Purpose Industrial Medical Telecommunications	200 µin	5.08 µm	Square	Board to Cable/Wire	0.508 in	12.9 mm	Tin	1	5.08 µm	200 µin	Header	0.419 in	10.65 mm	Shrouded - 1 Wall	0.142 in	3.6 mm	Friction Lock	UL94 V-2	Male Pin	Solder	0.2 "	5.08 mm	Nylon 6/6 Polyamide (PA66)	All	Through Hole	0.687 in	17.45 mm	Natural	10	Brass
