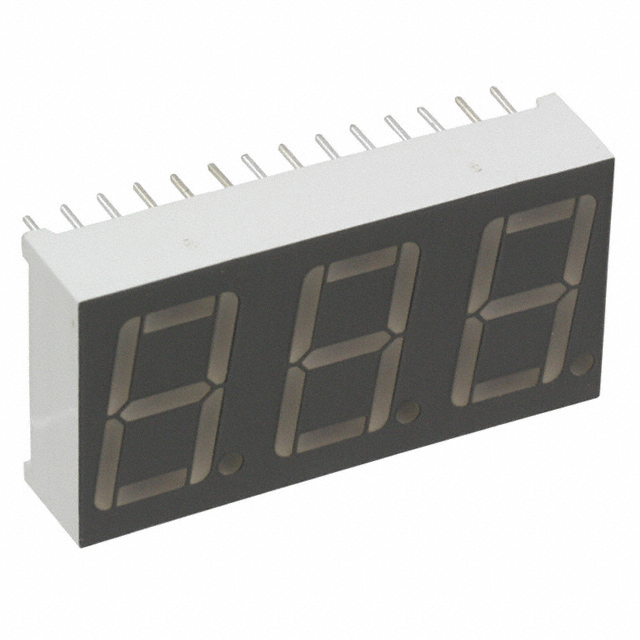

LDT-A514 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7SEG 0.56" TRP RED 28DIP
| Part | Color | Millicandela Rating | Power Dissipation (Max) [Max] | Voltage - Forward (Vf) (Typ) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Wavelength - Peak | Common Pin | Number of Characters | Package / Case | Package / Case | Package / Case | Current - Test | Digit/Alpha Size | Digit/Alpha Size | Display Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Lumex Opto/Components Inc. | Red | 0.03 mcd | 105 mW | 2.1 V | 8 mm | 19 mm | 0.748 in | 0.315 in | 37.8 mm | 1.488 " | 635 nm | Common Anode | 3 | 28-DIP | 15.24 mm | 0.6 in | 10 mA | 0.56 in | 14.22 mm | 7-Segment |
