5595201 Series

Manufacturer: DIALIGHT

Catalog

LED PANEL GRN DIFF SNAP-IN

Part	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Termination Style	Termination Style	Termination Style	Current	Viewing Angle	Lens Style	Lens Transparency	Type	Panel Cutout Shape	Lens Size	Lens Size	Voltage	Millicandela Rating	Lamp Color	Lens Color	Wavelength - Peak
DIALIGHT 5595201017F	6.35 mm	0.25 in	Wire Leads	14 in	355.6 mm	25 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm
DIALIGHT 5595201001F	6.35 mm	0.25 in	PC Pin			25 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm

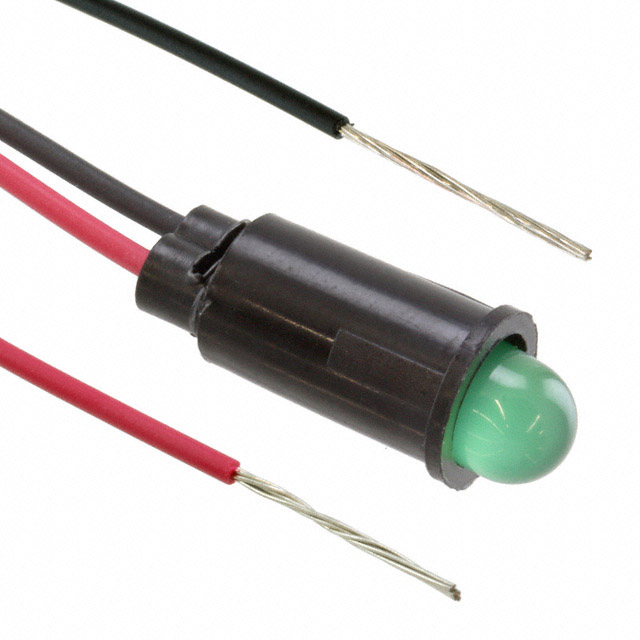

DIALIGHT 5595201027F	6.35 mm	0.25 in	Wire Leads	14 in	355.6 mm	20 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm

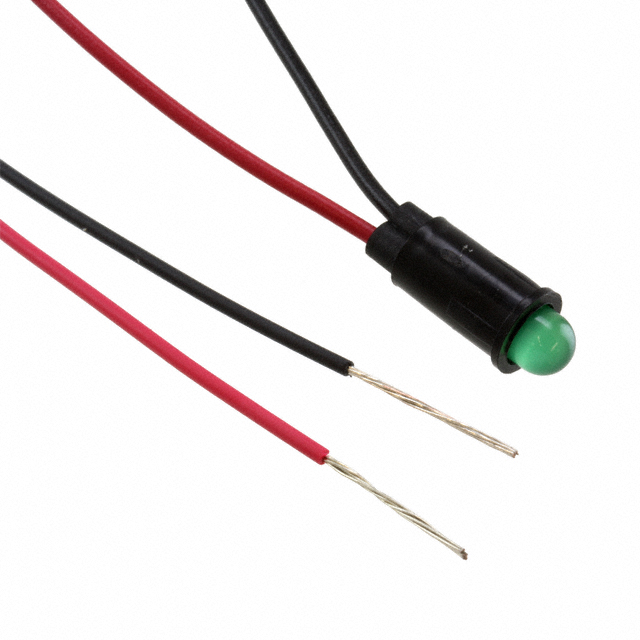

DIALIGHT 5595201003F	6.35 mm	0.25 in				20 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm
DIALIGHT 5595201812F	6.35 mm	0.25 in				25 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm
DIALIGHT 5595201807F	6.35 mm	0.25 in	Wire Leads	14 in	355.6 mm	25 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm

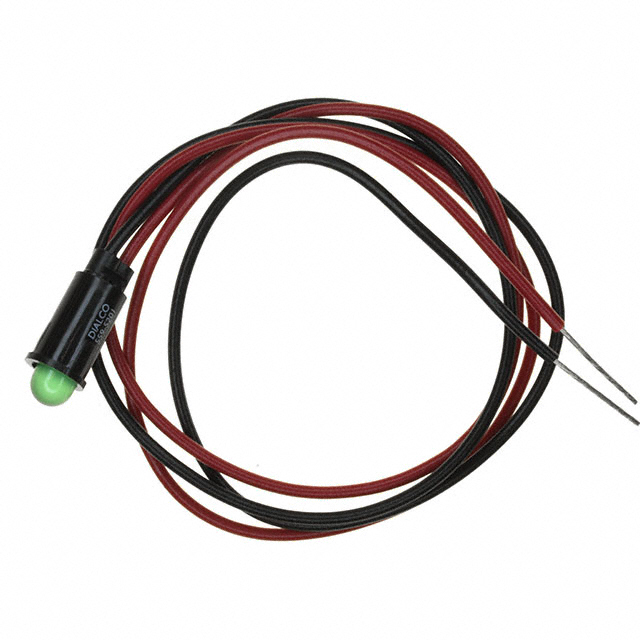

DIALIGHT 5595201007F	6.35 mm	0.25 in	Wire Leads	14 in	355.6 mm	25 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green		563 nm
DIALIGHT 5595201809F	6.35 mm	0.25 in				25 mA	50 °	Round with Domed Top	Diffused	LED	Round	5 mm	T-1 3/4	2.2 V	34 mcd	Green	Green	563 nm
