97279 Series

Manufacturer: Pflitsch

Catalog

CABLE GLAND 8.89-12.95MM M25

Part	Thread Size	Type	Includes	Outside Cable Diameter (Min) [Min]	Outside Cable Diameter (Min) [Min]	Panel Hole Size	Panel Hole Size	Operating Temperature [Min]	Operating Temperature [Max]	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Material	Color	Ingress Protection

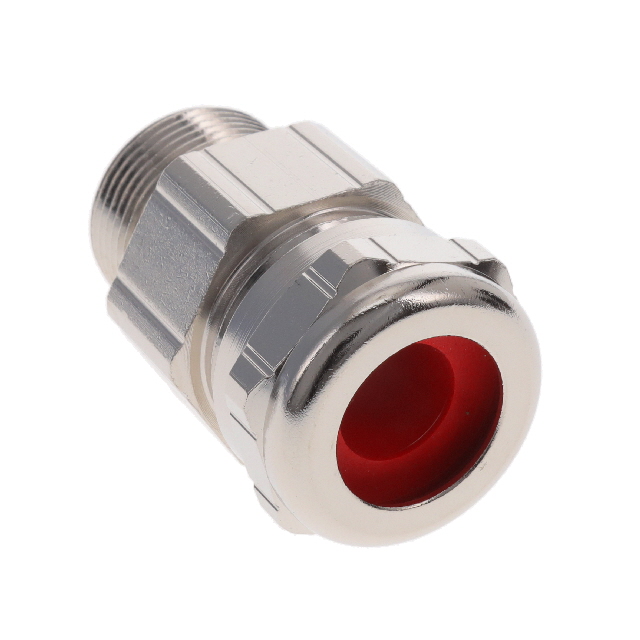

Pflitsch 97279.6/15	M25x1.5	Cable Gland	Sealing Ring	8.89 mm	0.35 "	0.98 in	24.9 mm	-40 C	300 °C	0.3 "	7.62 mm	0.51 in	12.95 mm	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof NEMA 4X
Pflitsch 97279.6	M25x1.5	Cable Gland	Sealing Ring	8.89 mm	0.35 "	0.98 in	24.9 mm	-40 C	300 °C	0.3 "	7.62 mm	0.51 in	12.95 mm	Brass Nickel Plated	Silver	IP68 - Dust Tight Waterproof NEMA 4X
