470915YY Series
Manufacturer: ALPHA WIRE
Beta
⌘K

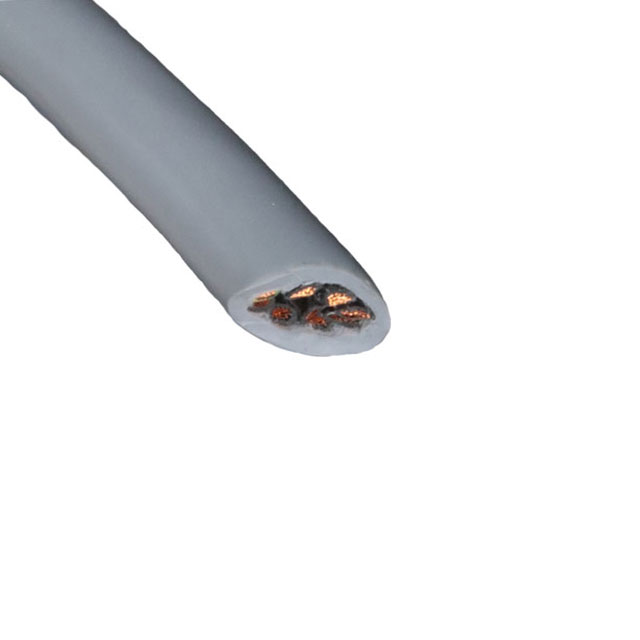

MULTICONDUCTOR CABLE, PRO-MET®, YY CONTROL, UNSHIELDED, 9 CONDUCTOR, 15 AWG, 1.5 MM², 328 FT, 100 M
| Part | Jacket Color | Jacket (Insulation) Material | Wire Gauge | Operating Temperature [Max] | Operating Temperature [Min] | Cable Type | Conductor Strand [custom] | Conductor Strand [diameter] | Number of Conductors | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Length [x] | Length [x] | Voltage | Usage | Features | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Gray | Poly-Vinyl Chloride (PVC) | 15 AWG | 80 °C | -40 C | Multi-Conductor | 28 | 0.0098 in | 9 | Copper Bare | 0.0425 in | 1.08 mm | 328.1 ft | 100 m | 300 VDC | Industrial | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 0.441 in | 11.2 mm | ||
 ALPHA WIRE | Gray | Poly-Vinyl Chloride (PVC) | 15 AWG | 80 °C | -40 C | Multi-Conductor | 28 | 0.0098 in | 9 | Copper Bare | 0.0425 in | 1.08 mm | 300 VDC | Industrial | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 0.441 in | 11.2 mm | 50 m | 164 ft | ||
ALPHA WIRE | Gray | Poly-Vinyl Chloride (PVC) | 15 AWG | 80 °C | -40 C | Multi-Conductor | 28 | 0.0098 in | 9 | Copper Bare | 0.0425 in | 1.08 mm | 984.3 ft | 300 m | 300 VDC | Industrial | Chemical Resistant Oil Resistant UV Resistant | Poly-Vinyl Chloride (PVC) | 0.441 in | 11.2 mm | 1 m 10 m | 3.28 ft 32.81 ft |
