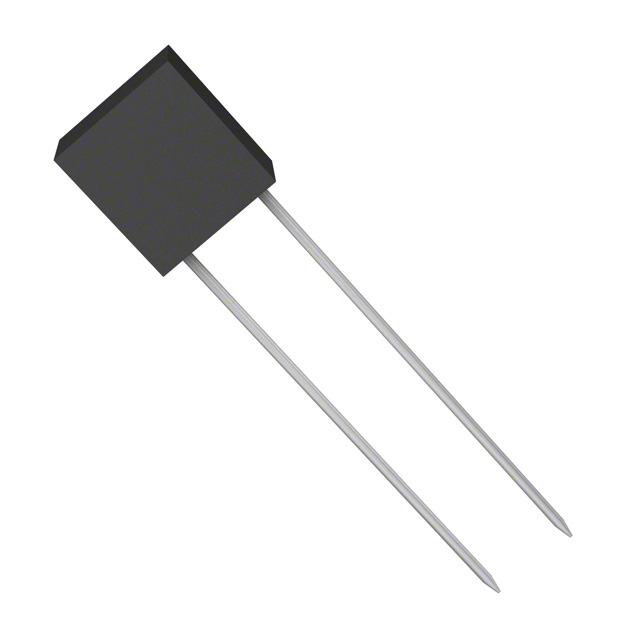

2727 Series

Manufacturer: Delevan

Catalog

POWER INDUCTORS - LEADED 100 UH 5%

Part	Material - Core	Mounting Type	Shielding	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Inductance	Current Rating (Amps)	Height - Seated (Max) [Max]	Height - Seated (Max)	Tolerance	DC Resistance (DCR)	Frequency - Self Resonant	Type	Inductance Frequency - Test	Q @ Freq [custom]	Q @ Freq [custom]	Q @ Freq	DC Resistance (DCR) [Max]
Delevan 2727-13J	Iron	Through Hole	Unshielded	Radial Vertical	-55 C	125 °C	7.11 mm	0.28 in	4.06 mm	0.16 in	100 µH	140 mA	0.3 in	7.62 mm	5 %	9.7 Ohm	9.1 MHz	Toroidal	2.5 MHz	80	2.5 MHz
Delevan 2727-25H	Iron	Through Hole	Unshielded	Radial Vertical	-55 C	125 °C	7.11 mm	0.28 in	4.06 mm	0.16 in	1 mH	84 mA	0.3 in	7.62 mm	3 %		2.2 MHz	Toroidal	790 kHz			50 790 kHz	27 Ohm
Delevan 2727-21H	Iron	Through Hole	Unshielded	Radial Vertical	-55 C	125 °C	7.11 mm	0.28 in	4.06 mm	0.16 in	470 µH	84 mA	0.3 in	7.62 mm	3 %		3.5 MHz	Toroidal	790 kHz				27 Ohm
Delevan 2727-09H	Iron	Through Hole	Unshielded	Radial Vertical	-55 C	125 °C	7.11 mm	0.28 in	4.06 mm	0.16 in	47 µH	0.2 A	0.3 in	7.62 mm	3 %		14 MHz	Toroidal	2.5 MHz	80	2.5 MHz		4.7 Ohm
Delevan 2727-22J	Iron	Through Hole	Unshielded	Radial Vertical	-55 C	125 °C	7.11 mm	0.28 in	4.06 mm	0.16 in	560 µH	77 mA	0.3 in	7.62 mm	5 %		3.1 MHz	Toroidal	790 kHz				32 Ohm
