RDMAR10 Series
Manufacturer: E-Switch
Beta
⌘K

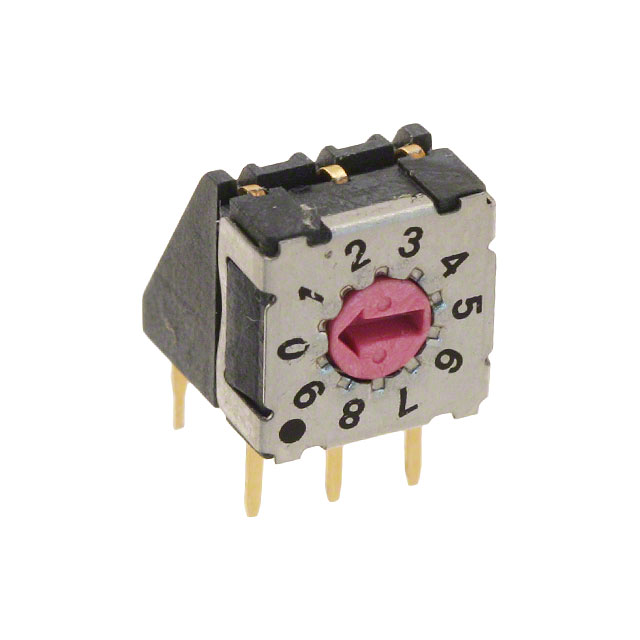

SWITCH ROTARY DIP BCD 0.1A 42V
| Part | Electrical Life | Mechanical Life | Length | Length | Mounting Type | Current Rating (Amps) | Termination Style | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Level | Voltage Rating | Features | Washable | Number of Positions | Contact Finish | Circuit | Actuator Type | Pitch | Pitch | Height Above Board [z] | Height Above Board [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 25000 Steps | 25000 Steps | 7.4 mm | 0.291 in | Right Angle Through Hole | 100 mA | PC Pin | -60 °C | 125 °C | Flush Recessed | 42 VDC | IP67 - Dust Tight Waterproof | 10 | Gold | BCD | Rotary for Tool | 2.54 mm | 0.1 " | 0.291 in | 7.39 mm |
