XMS500 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 500W, 250 W, 90V AC TO 264V AC, FIXED

Part	Power (Watts)	Power (Watts)	Features	Current - Output 1	Voltage - Output 1	Type	Voltage - Input [Max]	Voltage - Input [Min]	Applications	Voltage - Isolation	Operating Temperature [Max]	Number of Outputs	Efficiency	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Voltage - Output 1 [custom]
TDK Corporation XMS500BN	500 W	250 W	Universal Input	20.8 A	24 V	Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4.21 in	1.56 "	7.09 in	39.5 mm	107 mm
TDK Corporation XMS500G8	500 W	250 W	Universal Input	13.8 A		Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4 "	1.46 in	7.1 in	37 mm	102 mm	36 V
TDK Corporation XMS500FR	500 W	250 W	Universal Input	13.8 A		Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4 "	1.46 in	7.1 in	37 mm	102 mm	36 V
TDK Corporation XMS500RY	500 W	250 W	Universal Input	10.4 A	48 V	Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4.21 in	1.56 "	7.09 in	39.5 mm	107 mm

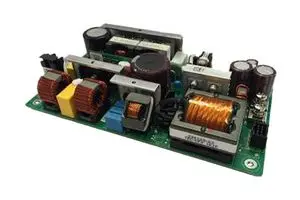

TDK Corporation XMS500MC	500 W	250 W	Universal Input	10.4 A	48 V	Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4 "	1.46 in	7.1 in	37 mm	102 mm
TDK Corporation XMS500LV		500 W	Universal Input	13.8 A		Enclosed	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount							36 V
TDK Corporation XMS500JT	500 W	250 W	Universal Input	13.8 A		Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4.21 in	1.56 "	7.09 in	39.5 mm	107 mm	36 V
TDK Corporation XMS500HS	500 W	250 W	Universal Input	13.8 A		Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4.21 in	1.56 "	7.09 in	39.5 mm	107 mm	36 V
TDK Corporation XMS500NW	500 W	250 W	Universal Input	10.4 A	48 V	Open Frame	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount	180 mm	4 "	1.46 in	7.1 in	37 mm	102 mm
TDK Corporation XMS500T0		500 W	Universal Input	10.4 A	48 V	Enclosed	264 VAC	90 VAC	ITE (Commercial) Medical	4000 V	70 °C	1	92 %	Chassis Mount
