A1_HV Series

Catalog

TRIMMER / VARIABLE CAPACITORS 0.6 - 12PF 500V

Part	Mounting Type	Voltage - Rated	Dielectric Material	Capacitance Range [Max]	Capacitance Range [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Features	Adjustment Type	Q @ Freq	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Min]	Operating Temperature [Max]

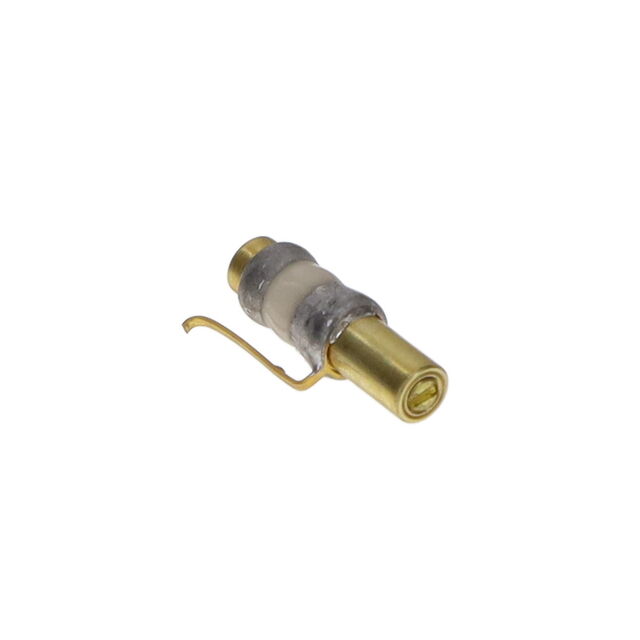

Knowles Syfer A1M12HVS	Surface Mount	500 V	Polytetrafluoroethylene (PTFE)	12 pF	0.6 pF	0.5 in	12.7 mm	General Purpose	Top	100 MHz 2000	3.05 mm	0.12 "	-65 ░C	125 °C
Knowles Syfer A1T4HV	Panel Mount	1000 V	Polytetrafluoroethylene (PTFE)	4 pF	0.45 pF	0.39 "	9.91 mm	General Purpose	Top	100 MHz 4000	4.06 mm	0.16 in	-65 ░C	125 °C
