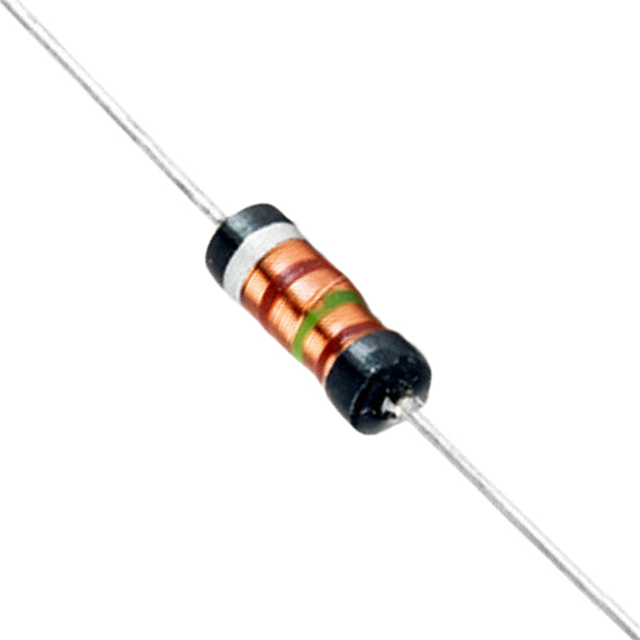

AIAP-01 Series
Manufacturer: Abracon LLC
Beta
⌘K
POWER INDUCTORS - LEADED AXIAL POWER INDUCTOR, 9.14MM X 3.3MM
| Part | Current Rating (Amps) | Inductance | Package / Case | Type | Tolerance | Shielding | DC Resistance (DCR) | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Frequency - Self Resonant | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Inductance Frequency - Test |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Abracon LLC | 910 mA | 33 µH | Axial | Wirewound | 10 % | Unshielded | 290 mOhm | Through Hole | -40 C | 105 ░C | 7.6 MHz | 9.14 mm | 3.3 mm | 0.36 in | 0.13 in | 1 kHz |
