2707-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

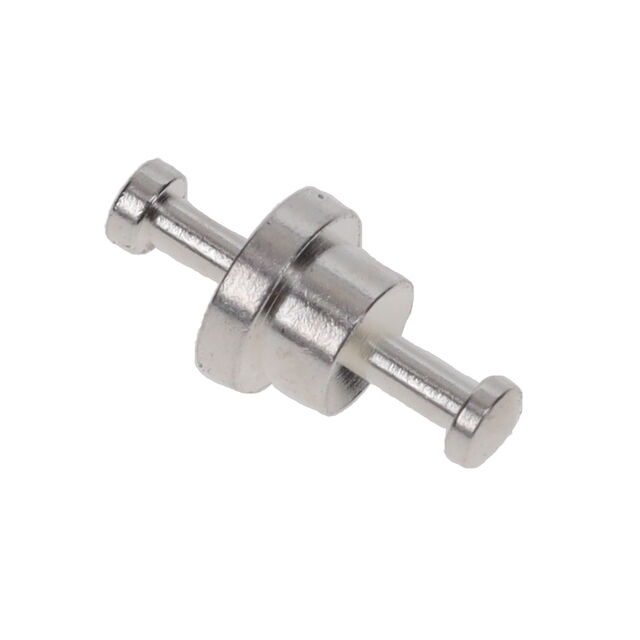

TERM TURRET DOUBLE L=3.96MM
| Part | Terminal Type | Length - Above Board [x] | Length - Above Board [x] | Board Thickness | Board Thickness | Number of Turrets | Mounting Type | Contact Material | Length - Below Flange [x] | Length - Below Flange [x] | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Termination | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Double End | 0.156 in | 3.96 mm | 0.79 mm | 0.031 in | Single | Through Hole | Brass Alloy | 4.75 mm | 0.187 " | Non-Insulated | 0.12 in | 3.05 mm | 3.96 mm | 0.156 " | Swage | 0.07 in | 1.78 mm | Tin-Lead | 7.62 µm | 300 µin | 8.71 mm | 0.343 in |
Mill-Max Manufacturing Corp. | Double End | 0.156 in | 3.96 mm | 0.79 mm | 0.031 in | Single | Through Hole | Brass Alloy | 4.75 mm | 0.187 " | Non-Insulated | 0.12 in | 3.05 mm | 3.96 mm | 0.156 " | Swage | 0.07 in | 1.78 mm | Tin | 5.08 Ám | 200 Áin | 8.71 mm | 0.343 in |
 Mill-Max Manufacturing Corp. | Double End | 0.156 in | 3.96 mm | 0.79 mm | 0.031 in | Single | Through Hole | Brass Alloy | 4.75 mm | 0.187 " | Non-Insulated | 0.12 in | 3.05 mm | 3.96 mm | 0.156 " | Swage | 0.07 in | 1.78 mm | Silver | 7.62 µm | 300 µin | 8.71 mm | 0.343 in |
Mill-Max Manufacturing Corp. | Double End | 0.156 in | 3.96 mm | 0.79 mm | 0.031 in | Single | Through Hole | Brass Alloy | 4.75 mm | 0.187 " | Non-Insulated | 0.12 in | 3.05 mm | 3.96 mm | 0.156 " | Swage | 0.07 in | 1.78 mm | Tin-Lead | 5.08 Ám | 200 Áin | 8.71 mm | 0.343 in |
