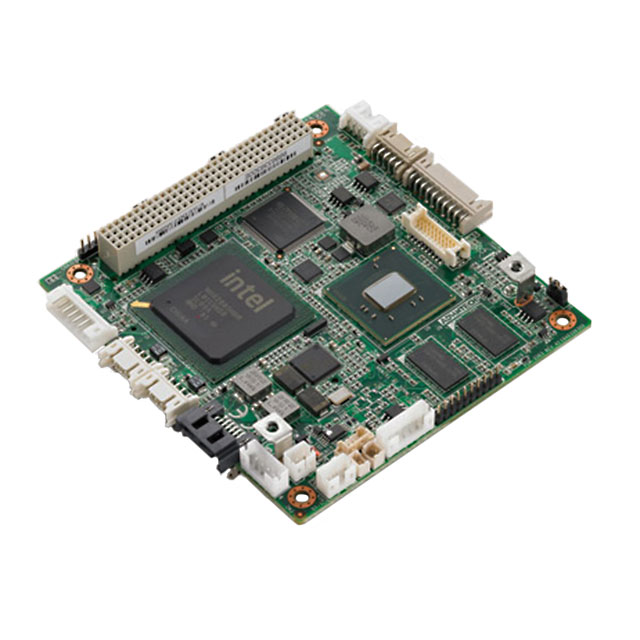

PCM-3363 Series
Manufacturer: Advantech Corporation
Beta
⌘K
SBC 1.66GHZ 1 CORE 1GB/1GB RAM
| Part | Watchdog Timer | Storage Interface | USB | Expansion Site/Bus | Cooling Type | Speed | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Video Outputs | RS-232 (422, 485) [custom] | RS-232 (422, 485) [custom] | RS-232 (422, 485) [custom] | RAM Capacity/Installed | Power (Watts) | Digital I/O Lines | Operating Temperature [Min] | Operating Temperature [Max] | Number of Cores [custom] | Core Processor | Form Factor | Ethernet | Number of Cores |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advantech Corporation | CompactFlash SATA2 | USB 2.0 (4) | PC/104 | Heat Sink | 1.66 GHz | 3.5 " | 3.8 " | 88.9 mm | 96.52 mm | LVDS VGA | 3 | 3 | 3 | 1 GB | 7.02 W | 8 | 0 °C | 60 °C | 1 | Intel Atom N455 | PC/104 | 10 Mbps 100 Mbps 1000 Mbps | ||
Advantech Corporation | CompactFlash SATA2 | USB 2.0 (4) | PC/104 | Heat Sink | 1.66 GHz | 3.5 " | 3.8 " | 88.9 mm | 96.52 mm | LVDS VGA | 3 | 3 | 3 | 1 GB | 7.02 W | 8 | 0 °C | 60 °C | 1 | Intel Atom N455 | PC/104 | 10 Mbps 100 Mbps 1000 Mbps | ||
 Advantech Corporation | CompactFlash SATA2 | USB 2.0 (4) | PC/104 | Fan | 1.8 GHz | 3.5 " | 3.8 " | 88.9 mm | 96.52 mm | LVDS VGA | 3 | 3 | 3 | 1 GB | 9.25 W | 8 | 0 °C | 60 °C | Intel Atom D525 | PC/104 | 10 Mbps 100 Mbps 1000 Mbps | 2 | ||
Advantech Corporation | CompactFlash SATA2 | USB 2.0 (4) | PC/104 | Fan | 1.8 GHz | 3.5 " | 3.8 " | 88.9 mm | 96.52 mm | LVDS VGA | 3 | 3 | 3 | 1 GB | 9.25 W | 8 | 0 °C | 60 °C | Intel Atom D525 | PC/104 | 10 Mbps 100 Mbps 1000 Mbps | 2 |
