GBC12D Series

Catalog

CONN HEADER SMD 24POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Mounting Type	Contact Finish - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Contact Material	Insulation Color	Contact Shape	Contact Finish - Post	Current Rating (Amps)	Number of Rows [custom]	Termination	Connector Type	Material Flammability Rating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type

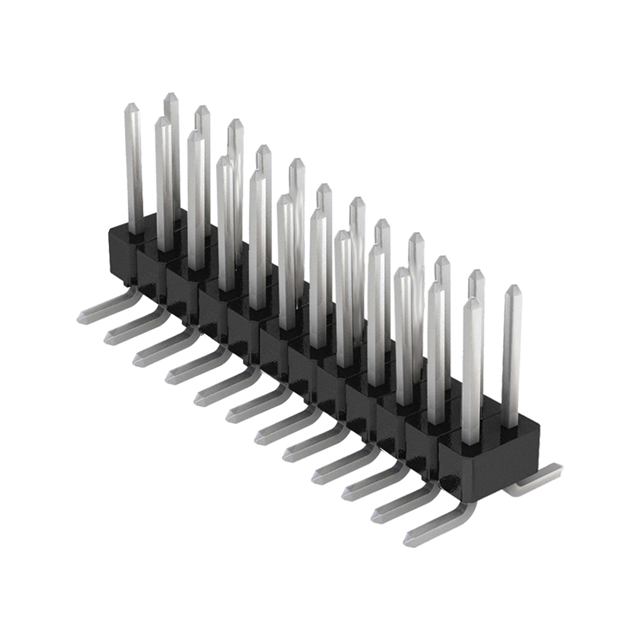

Sullins Connector Solutions GBC12DABN-M30	2.54 µm	100 µin	0.1 in	2.54 mm	0.23 in	5.84 mm	All	Unshrouded	0.25 µm	10 µin	Nylon 9T Polyamide (PA9T)	Surface Mount	Gold	150 °C	-65 ░C	Push-Pull	24	0.1 "	2.54 mm	Board to Board Cable	Phosphor Bronze	Black	Square	Tin	3 A	2	Solder	Header Breakaway	UL94 V-0	0.1 in	2.54 mm	Male Pin
