JW Series

Manufacturer: Panasonic Electronic Components

Catalog

GENERAL PURPOSE RELAYS JW RELAY

Part	Operate Time	Release Time	Approval Agency	Must Release Voltage	Must Operate Voltage	Coil Voltage	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Form	Contact Rating (Current)	Switching Voltage [Max]	Load - Max Switching	Coil Current	Relay Type	Termination Style	Seal Rating	Coil Type	Coil Insulation	Contact Material	Coil Resistance
Panasonic Electronic Components JW2AHN-B-DC24V	15 ms	5 ms	CQC CSA UR VDE	2.4 VDC	16.8 VDC	24 VDC	Through Hole	85 °C	-40 C	DPST-NO (2 Form A)	5 A	30 VDC 250 VAC	150 W 1250 VA	22 mA	General Purpose	PC Pin	Sealed - Flux Protection	Non Latching	Class B	Silver Alloy
Panasonic Electronic Components JW1ASN-B-DC48V-F	15 ms	5 ms	CQC CSA UR VDE	4.8 VDC	33.6 VDC	48 VDC	Through Hole	85 °C	-40 C	SPST-NO (1 Form A)	5 A	30 VDC 250 VAC	150 W 1250 VA	11 mA	General Purpose	PC Pin	Sealed - Fully	Non Latching	Class B	Silver Tin Oxide (AgSnO)	4.4 kOhms
Panasonic Electronic Components JW1AHN-B-DC5V-F	15 ms	5 ms	CQC CSA UR VDE	0.5 VDC	3.5 VDC	5 VDC	Through Hole	85 °C	-40 C	SPST-NO (1 Form A)	5 A	30 VDC 250 VAC	150 W 1250 VA	106 mA	General Purpose	PC Pin	Sealed - Flux Protection	Non Latching	Class B	Silver Tin Oxide (AgSnO)
Panasonic Electronic Components JW1AFSN-DC5V-TV-F	15 ms	5 ms	CQC CSA UR VDE	0.5 VDC	3.5 VDC	5 VDC	Through Hole	60 °C	-40 C	SPST-NO (1 Form A)	10 A	30 VDC 250 VAC	300 W 2500 VA	106 mA	General Purpose	PC Pin	Sealed - Fully	Non Latching	Class E	Silver Tin Oxide (AgSnO)

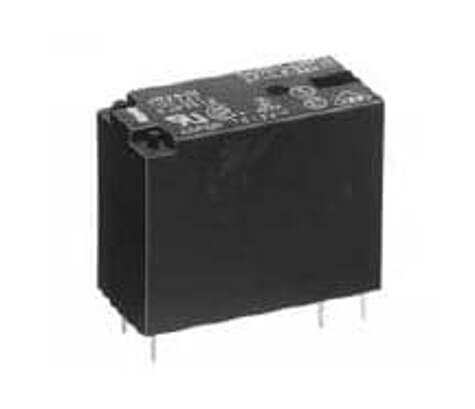

Panasonic Electronic Components JW2ASN-DC9V	15 ms	5 ms	CQC CSA UR VDE	0.9 VDC	6.3 VDC	9 VDC	Through Hole	60 °C	-40 C	DPST-NO (2 Form A)	5 A	30 VDC 250 VAC	150 W 1250 VA	58 mA	General Purpose	PC Pin	Sealed - Fully	Non Latching	Class E	Silver Alloy	155 Ohms
Panasonic Electronic Components JW2HN-DC5V	15 ms	5 ms	CQC CSA UR VDE	0.5 VDC	3.5 VDC	5 VDC	Through Hole	60 °C	-40 C	DPDT (2 Form C)	5 A	30 VDC 250 VAC	150 W 1250 VA	106 mA	General Purpose	PC Pin	Sealed - Flux Protection	Non Latching	Class E	Silver Alloy	47 Ohms
Panasonic Electronic Components JW1FHN-B-DC6V	15 ms	5 ms	CQC CSA UR VDE	0.6 VDC	4.2 VDC		Through Hole	85 °C	-40 C	SPDT (1 Form C)	10 A	30 VDC 250 VAC	300 W 2500 VA	88 mA	General Purpose	PC Pin	Sealed - Flux Protection	Non Latching	Class B	Silver Alloy
Panasonic Electronic Components JW1ASN-DC9V-F	15 ms	5 ms	CQC CSA UR VDE	0.9 VDC	6.3 VDC	9 VDC	Through Hole	60 °C	-40 C	SPST-NO (1 Form A)	5 A	30 VDC 250 VAC	150 W 1250 VA	58 mA	General Purpose	PC Pin	Sealed - Fully	Non Latching	Class E	Silver Tin Oxide (AgSnO)
Panasonic Electronic Components JW1SN-DC48V	15 ms	5 ms	CQC CSA UR VDE	4.8 VDC	33.6 VDC	48 VDC	Through Hole	60 °C	-40 C	SPDT (1 Form C)	5 A	30 VDC 250 VAC	150 W 1250 VA	11 mA	General Purpose	PC Pin	Sealed - Fully	Non Latching	Class E	Silver Alloy
Panasonic Electronic Components JW2SN-B-DC5V	15 ms	5 ms	CQC CSA UR VDE	0.5 VDC	3.5 VDC	5 VDC	Through Hole	85 °C	-40 C	DPDT (2 Form C)	5 A	30 VDC 250 VAC	150 W 1250 VA	106 mA	General Purpose	PC Pin	Sealed - Fully	Non Latching	Class B	Silver Alloy
