3110-14 Series

Manufacturer: CNC Tech

Catalog

CONN HEADER VERT 14POS 2MM

Part	Fastening Type	Contact Finish - Mating	Number of Positions Loaded	Mounting Type	Contact Material	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Mating	Number of Positions	Row Spacing - Mating	Row Spacing - Mating	Style	Material Flammability Rating	Number of Rows [custom]	Pitch - Mating	Pitch - Mating	Termination	Insulation Material	Features	Contact Shape	Connector Type	Shrouding	Contact Length - Post [x]	Contact Length - Post [x]
CNC Tech 3110-14-001-12-00	Latch Lock/Eject Hooks	Gold	All	Through Hole	Brass	Male Pin	-40 C	105 ░C	Flash	14	2 mm	0.079 in	Board to Cable/Wire	UL94 V-0	2	0.079 "	2 mm	Solder	Polybutylene Terephthalate (PBT)	Keying Slot	Square	Header	Shrouded - 4 Wall	0.122 in	3.1 mm

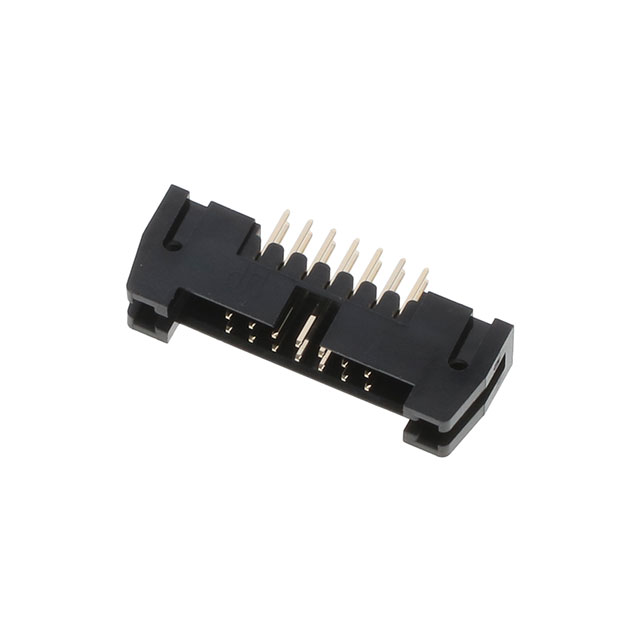

CNC Tech 3110-14-001-11-00	Push-Pull	Gold	All	Through Hole	Brass	Male Pin	-40 C	105 ░C	Flash	14	2 mm	0.079 in	Board to Cable/Wire	UL94 V-0	2	0.079 "	2 mm	Solder	Polybutylene Terephthalate (PBT)	Keying Slot	Square	Header	Shrouded - 4 Wall	0.122 in	3.1 mm
CNC Tech 3110-14-001-13-00	Latch Lock/Eject Hooks Long	Gold	All	Through Hole	Brass	Male Pin	-40 C	105 ░C	Flash	14	2 mm	0.079 in	Board to Cable/Wire	UL94 V-0	2	0.079 "	2 mm	Solder	Polybutylene Terephthalate (PBT)	Keying Slot	Square	Header	Shrouded - 4 Wall	0.122 in	3.1 mm
