424-047 Series
Manufacturer: EDAC Inc.
Beta
⌘K

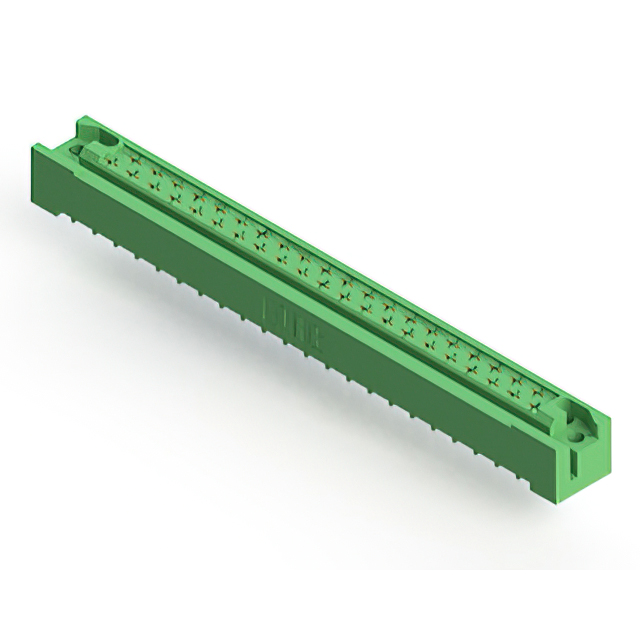

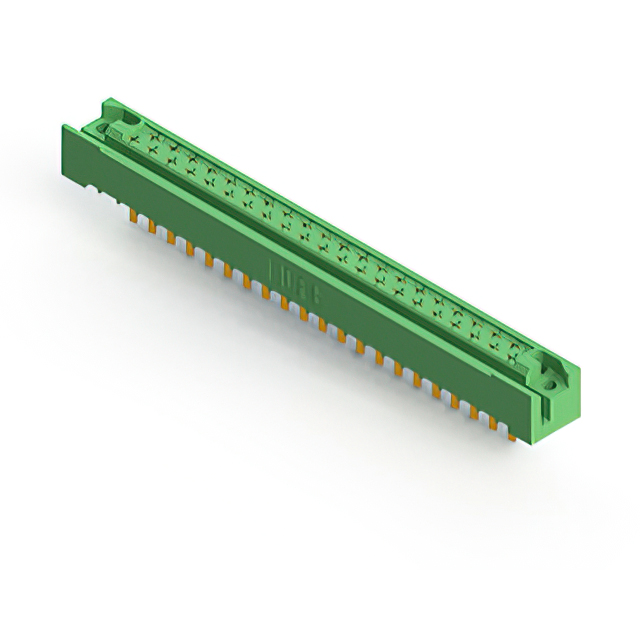

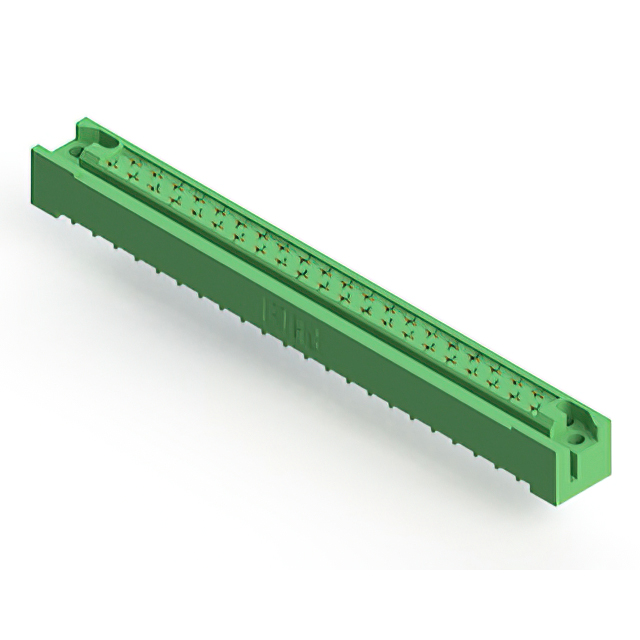

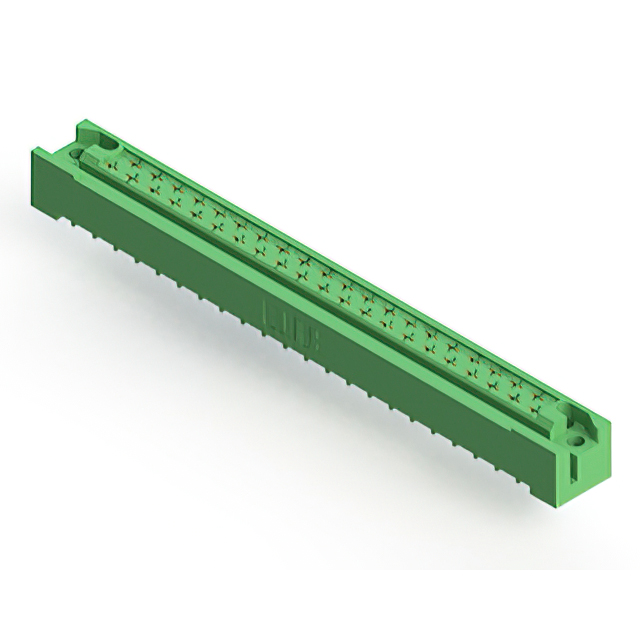

CONN EDGE DL FMALE 47P 0.200 2PC
| Part | Termination Rows [custom] | Material - Insulation | Gender | Contact Finish Thickness | Contact Finish Thickness | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions | Contact Finish | Contact Material | Card Thickness | Card Thickness | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Rows [custom] | Pitch | Pitch | Card Type | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 1.57 mm | 0.062 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Solder | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 2.36 mm | 0.093 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Wire Wrap | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 1.57 mm | 0.062 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Solder | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 1.57 mm | 0.062 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Wire Wrap | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 2.36 mm | 0.093 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Solder | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 1.57 mm | 0.062 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Solder | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 2.36 mm | 0.093 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Wire Wrap | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 1.57 mm | 0.062 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Wire Wrap | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 1.57 mm | 0.062 in | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Solder | Panel Mount Through Hole |
 EDAC Inc. | 2 | Diallyl Phthalate (DAP) | Female | 0.25 Ám | 10 Áin | Green | -65 ░C | 125 °C | 47 | Gold | Copper Alloy | 2.36 mm | 0.093 " | Flush Mount Top Opening Unthreaded | 3.25 mm | 0.128 " | 2 | 5.08 mm | 0.2 in | Non Specified - Dual Edge | Solder | Panel Mount Through Hole |
