PTH08000W Series

2.25-A, 5/12-V Input, Non-Isolated Wide Adjust Module w/ Auto-Track

Catalog

2.25-A, 5/12-V Input, Non-Isolated Wide Adjust Module w/ Auto-Track

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Type	Number of Outputs	Mounting Type	Current - Output (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Package / Case	Efficiency	Applications	Features

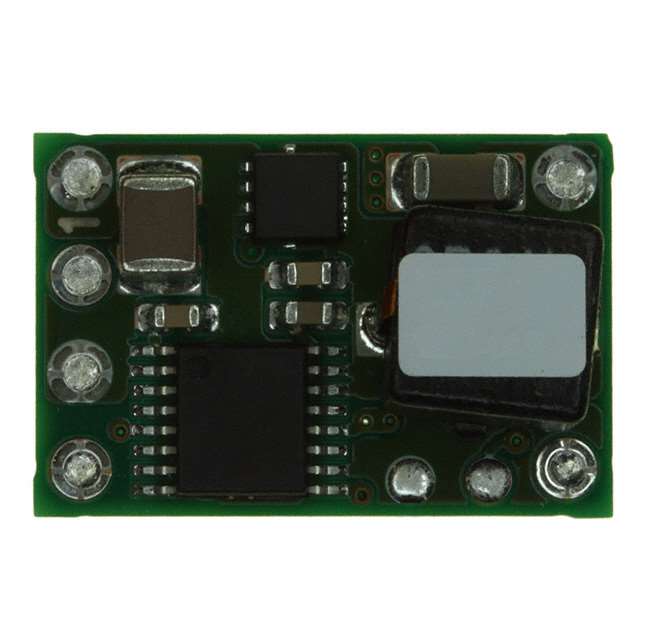

Texas Instruments PTH08000WAS	4.5 V	14 V	85 °C	-40 °C	0.9 V	5.5 V	Non-Isolated PoL Module	1	Surface Mount	2.25 A	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	6-SMD Module	93.5 %	ITE (Commercial)	OCP OTP Remote On/Off UVLO
Texas Instruments PTH08000WAZ	4.5 V	14 V	85 °C	-40 °C	0.9 V	5.5 V	Non-Isolated PoL Module	1	Surface Mount	2.25 A	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	6-SMD Module	93.5 %	ITE (Commercial)	OCP OTP Remote On/Off UVLO

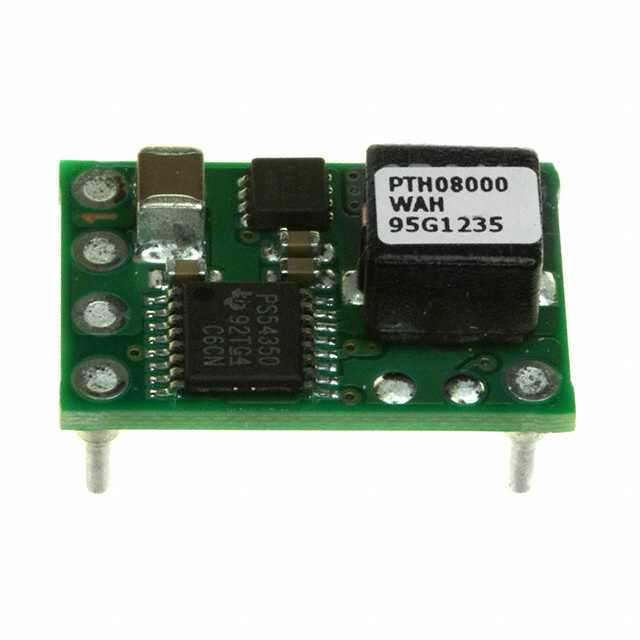

Texas Instruments PTH08000WAH	4.5 V	14 V	85 °C	-40 °C	0.9 V	5.5 V	Non-Isolated PoL Module	1	Through Hole	2.25 A	0.75 in	0.5 in	8.6 mm	19.1 mm	12.7 mm	0.34 in	6-DIP Module	93.5 %	ITE (Commercial)
Texas Instruments PTH08000WAZT	4.5 V	14 V	85 °C	-40 °C	0.9 V	5.5 V	Non-Isolated PoL Module	1	Surface Mount	2.25 A	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	6-SMD Module	93.5 %	ITE (Commercial)	OCP OTP Remote On/Off UVLO
Texas Instruments PTH08000WAST	4.5 V	14 V	85 °C	-40 °C	0.9 V	5.5 V	Non-Isolated PoL Module	1	Surface Mount	2.25 A	0.75 in	0.5 in	9.1 mm	19.1 mm	12.7 mm	0.36 in	6-SMD Module	93.5 %	ITE (Commercial)	OCP OTP Remote On/Off UVLO

Catalog

2.25-A, 5/12-V Input, Non-Isolated Wide Adjust Module w/ Auto-Track

Key Features

• Up to 2.25-A Output Current at 85°C4.5-V to 14-V Input Voltage RangeWide-Output Voltage Adjust (0.9 V to 5.5 V)Efficiencies Up to 94%On/Off InhibitUndervoltage Lockout (UVLO)Output Overcurrent Protection (Nonlatching, Auto-Reset)Overtemperature ProtectionAmbient Temperature Range: -40°C to 85°CSurface-Mount PackageSafety Agency Approvals: UL/CUL 60950, EN60950APPLICATIONSTelecommunications, Instrumentation, and General-Purpose CircuitsAuto-Track, POLA, TMS320 are trademarks of Texas Instruments.Up to 2.25-A Output Current at 85°C4.5-V to 14-V Input Voltage RangeWide-Output Voltage Adjust (0.9 V to 5.5 V)Efficiencies Up to 94%On/Off InhibitUndervoltage Lockout (UVLO)Output Overcurrent Protection (Nonlatching, Auto-Reset)Overtemperature ProtectionAmbient Temperature Range: -40°C to 85°CSurface-Mount PackageSafety Agency Approvals: UL/CUL 60950, EN60950APPLICATIONSTelecommunications, Instrumentation, and General-Purpose CircuitsAuto-Track, POLA, TMS320 are trademarks of Texas Instruments.

Description

The PTH08000W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08000W sources output current at a much higher efficiency than a TO-220 linear regulator IC, eliminating the need for a heatsink. The small size (0.75 inch × 0.5 inch) and flexible operation creates value for a variety of applications. The input voltage range of the PTH08000W is 4.5 V to 14 V, allowing operation from either a 5-V or 12-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08000W can step down to voltages as low as 0.9 V from a 5-V input bus, with less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 5.5 V, using a single external resistor. This series includes Auto-Track™ sequencing. This feature simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Operating features include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. This product is available in both through-hole and surface-mount package options, including tape and reel. The PTH08000W is compatible with TI's roadmap for RoHS and lead-free compliance. The PTH08000W is a highly integrated, low-cost switching regulator module that delivers up to 2.25 A of output current. The PTH08000W sources output current at a much higher efficiency than a TO-220 linear regulator IC, eliminating the need for a heatsink. The small size (0.75 inch × 0.5 inch) and flexible operation creates value for a variety of applications. The input voltage range of the PTH08000W is 4.5 V to 14 V, allowing operation from either a 5-V or 12-V input bus. Using state-of-the-art switched-mode power-conversion technology, the PTH08000W can step down to voltages as low as 0.9 V from a 5-V input bus, with less than 1 W of power dissipation. The output voltage can be adjusted to any voltage over the range, 0.9 V to 5.5 V, using a single external resistor. This series includes Auto-Track™ sequencing. This feature simplifies the task of supply voltage sequencing in a power system by enabling modules to track each other, or any external voltage, during power up and power down. Operating features include an undervoltage lockout (UVLO), on/off inhibit, overcurrent protection, and overtemperature protection. Target applications include telecommunications, test and measurement applications, and high-end consumer products. This product is available in both through-hole and surface-mount package options, including tape and reel. The PTH08000W is compatible with TI's roadmap for RoHS and lead-free compliance.
