ACNV2601 Series
Manufacturer: Broadcom Limited
Beta
⌘K
OPTOISO 7.5KV OPEN COLL 10DIP GW
| Part | Current - DC Forward (If) (Max) [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Data Rate | Number of Channels [custom] | Inputs - Side 1/Side 2 [custom] | Inputs - Side 1/Side 2 [custom] | Voltage - Isolation | Package / Case | Current - Output / Channel | Supplier Device Package | Rise / Fall Time (Typ) | Voltage - Forward (Vf) (Typ) | Input Type | Output Type | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Common Mode Transient Immunity (Min) [Min] | Package / Case | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

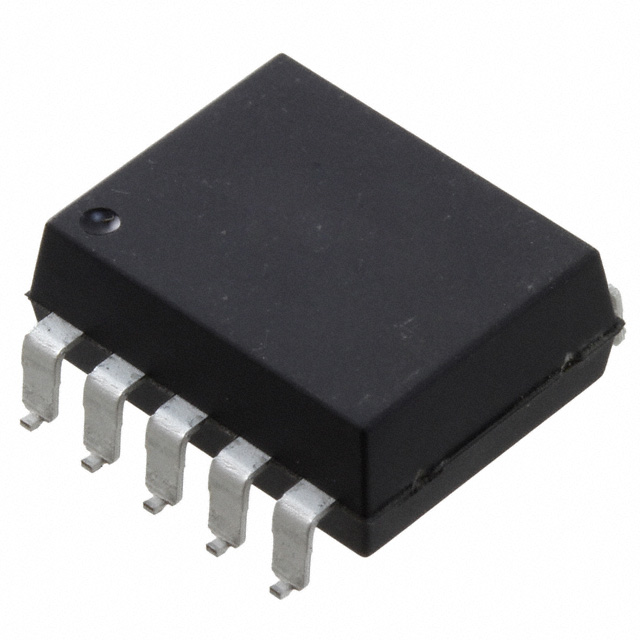

 Broadcom Limited | 20 mA | 5.5 V | 4.5 V | 10 Mbps | 1 | 1 | 0 | 7500 Vrms | 10-SMD Gull Wing | 50 mA | 10-DIP Gull Wing | 10 ns 25 ns | 1.64 V | DC | Open Collector Schottky Clamped | Surface Mount | -40 C | 105 ░C | 20 kV/µs | ||

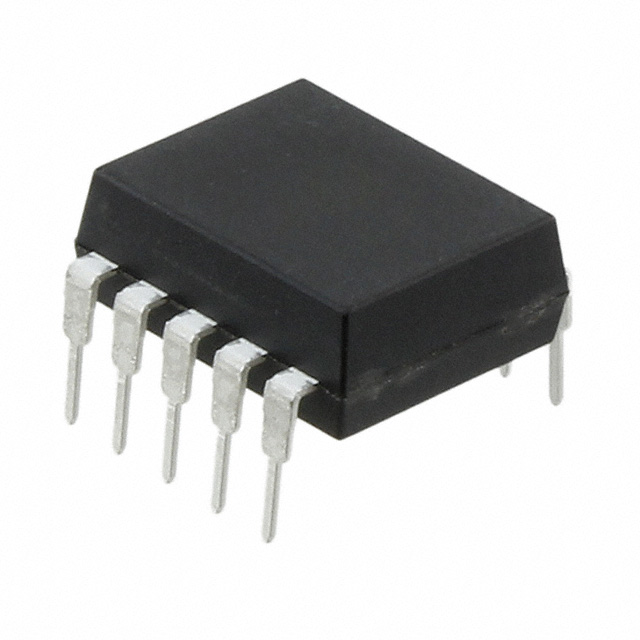

 Broadcom Limited | 20 mA | 5.5 V | 4.5 V | 10 Mbps | 1 | 1 | 0 | 7500 Vrms | 10-DIP | 50 mA | 10-DIP | 10 ns 25 ns | 1.64 V | DC | Open Collector Schottky Clamped | Through Hole | -40 C | 105 ░C | 20 kV/µs | 13.01 mm | 0.512 in |
 Broadcom Limited | 20 mA | 5.5 V | 4.5 V | 10 Mbps | 1 | 1 | 0 | 7500 Vrms | 10-SMD Gull Wing | 50 mA | 10-DIP Gull Wing | 10 ns 25 ns | 1.64 V | DC | Open Collector Schottky Clamped | Surface Mount | -40 C | 105 ░C | 20 kV/µs |
