UCC28230 Series

Catalog

IC REG CTRLR MULT TOP 14TSSOP

Part	Supplier Device Package	Output Phases	Package / Case [x]	Package / Case	Output Type	Output Configuration	Control Features	Mounting Type	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Frequency - Switching [Max]	Frequency - Switching [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Function	Topology	Outputs and Type	Outputs and Type	Supplied Contents	Board Type	Voltage - Input [Min]	Voltage - Input [Max]	Main Purpose	Current - Output	Contents	Voltage - Output	Regulator Topology
Texas Instruments UCC28230PW	14-TSSOP	1	0.173 " 4.4 mm	14-TSSOP	Transistor Driver	Positive	Frequency Control Soft Start	Surface Mount	7 V	17 V	550 kHz	100 kHz	-55 ░C	125 °C	4	Step-Up/Step-Down	Full-Bridge Half-Bridge Push-Pull

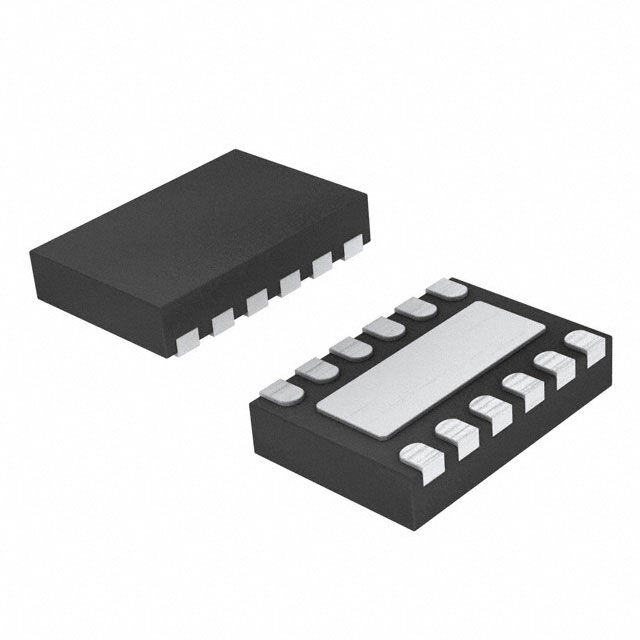

Texas Instruments UCC28230DRNT	12-USON (3x2)	1		12-UFDFN Exposed Pad	Transistor Driver	Positive	Frequency Control Soft Start	Surface Mount	7 V	17 V	550 kHz	100 kHz	-55 ░C	125 °C	4	Step-Up/Step-Down	Full-Bridge Half-Bridge Push-Pull

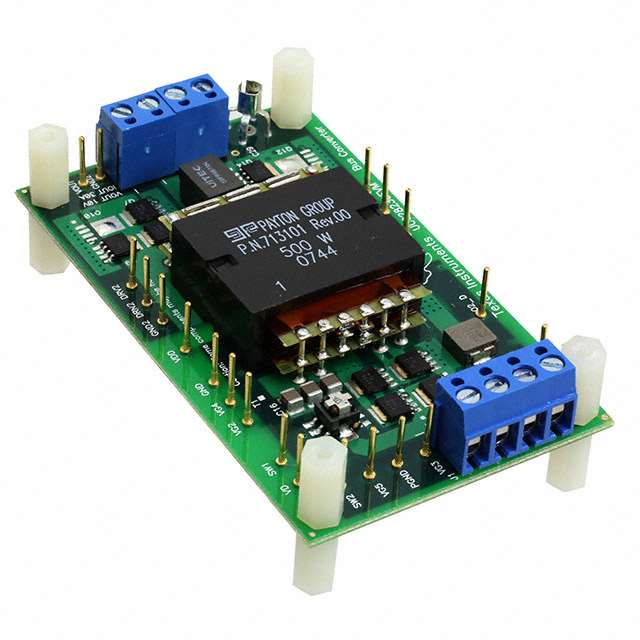

Texas Instruments UCC28230EVM																		1 Isolated Output Isolated	1	Board(s)	Fully Populated	43 VDC	53 V	DC/DC Step Down	30 A	Board(s)	9.5 V	Flyback
Texas Instruments UCC28230PWR	14-TSSOP	1	0.173 " 4.4 mm	14-TSSOP	Transistor Driver	Positive	Frequency Control Soft Start	Surface Mount	7 V	17 V	550 kHz	100 kHz	-55 ░C	125 °C	4	Step-Up/Step-Down	Full-Bridge Half-Bridge Push-Pull
Texas Instruments UCC28230DRNR	12-USON (3x2)	1		12-UFDFN Exposed Pad	Transistor Driver	Positive	Frequency Control Soft Start	Surface Mount	7 V	17 V	550 kHz	100 kHz	-55 ░C	125 °C	4	Step-Up/Step-Down	Full-Bridge Half-Bridge Push-Pull
