WR12AF Series

Catalog

SWITCH ROCKER SPDT 15A 125V

Part	Mechanical Life	Electrical Life	Mounting Type	Color - Actuator/Cap	Circuit	Voltage Rating - DC	Actuator Marking	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Approval Agency	Voltage Rating - AC	Termination Style	Current Rating (Amps)	Ingress Protection	Features	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type
NKK Switches WR12AFN/UCV	30000 Steps	15000 Cycles	Panel Mount Snap-In	Black	SPDT	30 V	No Marking	34.2 mm	17.2 mm	EN UL	125 V	Quick Connect - 0.250" (6.3mm)	15 A	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	On-On	85 °C	-25 °C	Concave (Curved)
NKK Switches WR12AF/UCV	30000 Steps	15000 Cycles	Panel Mount Snap-In	Black	SPDT	30 V	No Marking	34.2 mm	17.2 mm	EN UL	125 V	Quick Connect - 0.250" (6.3mm)	15 A	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	On-On	85 °C	-25 °C	Concave (Curved)

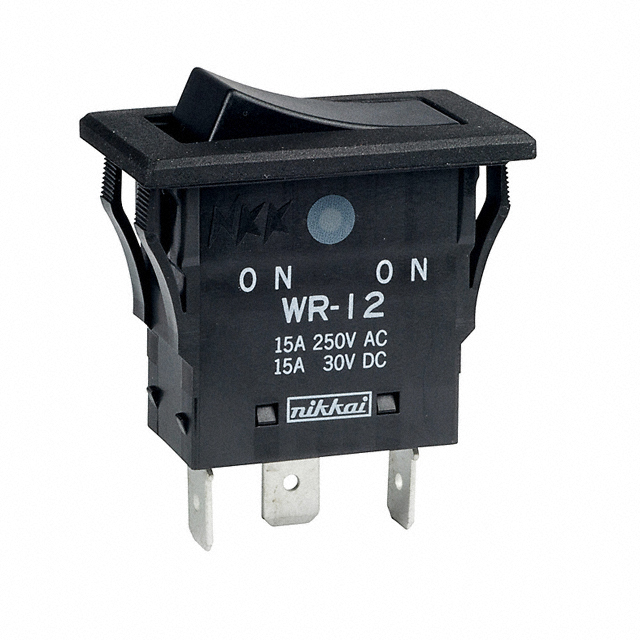

NKK Switches WR12AFN	30000 Steps	15000 Cycles	Panel Mount Snap-In	Black	SPDT	30 V	No Marking	34.2 mm	17.2 mm	EN UL	125 V	Quick Connect - 0.250" (6.3mm)	15 A	IP67 - Dust Tight Waterproof	Epoxy Sealed Terminals	On-On	85 °C	-25 °C	Concave (Curved)
