PWR220 Series

Catalog

RES 0.01 OHM 5% 15W TO220-2

Part	Resistance	Package / Case	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Features	Temperature Coefficient	Number of Terminations [custom]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Tolerance	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package	Height - Seated (Max)	Height - Seated (Max) [Max]	Number of Terminations
Bourns Inc. PWR220-2SBR010J	10 mOhms	TO-220-2 Full Pack	15 W	0.681 in	17.3 mm	Pulse Withstanding	50 ppm/░C	2	4 mm	0.4 "	10.16 mm	0.157 "	5 %	130 °C	-40 C	TO-220-2

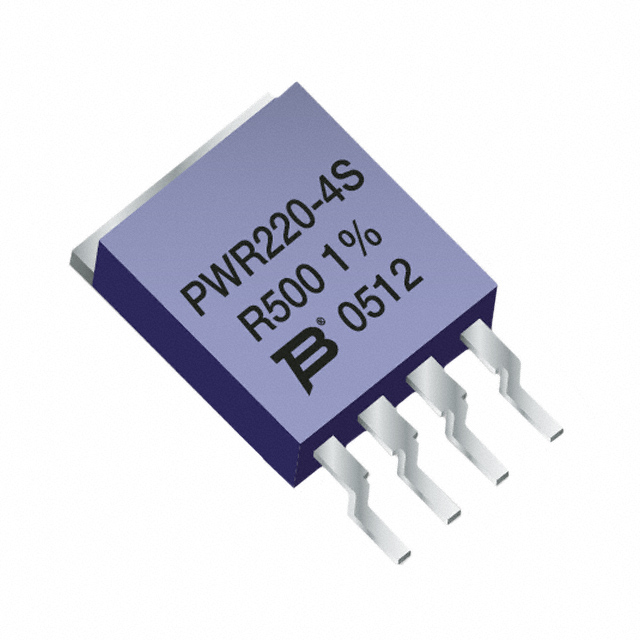

Bourns Inc. PWR220-4SAR010J	10 mOhms	SMD TO-220-4	15 W			Current Sense Pulse Withstanding	50 ppm/░C		10.16 mm	0.5 "	12.7 mm	0.4 "	5 %	130 °C	-40 C	TO-220-4	4 mm	0.157 in	4
Bourns Inc. PWR220-4SAR050J	0.05 Ohms	SMD TO-220-4	15 W			Current Sense Pulse Withstanding	50 ppm/░C		10.16 mm	0.5 "	12.7 mm	0.4 "	5 %	130 °C	-40 C	TO-220-4	4 mm	0.157 in	4
Bourns Inc. PWR220-4SAR002J	2 mOhms	SMD TO-220-4	15 W			Current Sense Pulse Withstanding	50 ppm/░C		10.16 mm	0.5 "	12.7 mm	0.4 "	5 %	130 °C	-40 C	TO-220-4	4 mm	0.157 in	4
Bourns Inc. PWR220-4SBR050J	0.05 Ohms	TO-220-4 Full Pack	15 W	0.681 in	17.3 mm	Pulse Withstanding	50 ppm/░C		4 mm	0.4 "	10.16 mm	0.157 "	5 %	130 °C	-40 C	TO-220-4			4
