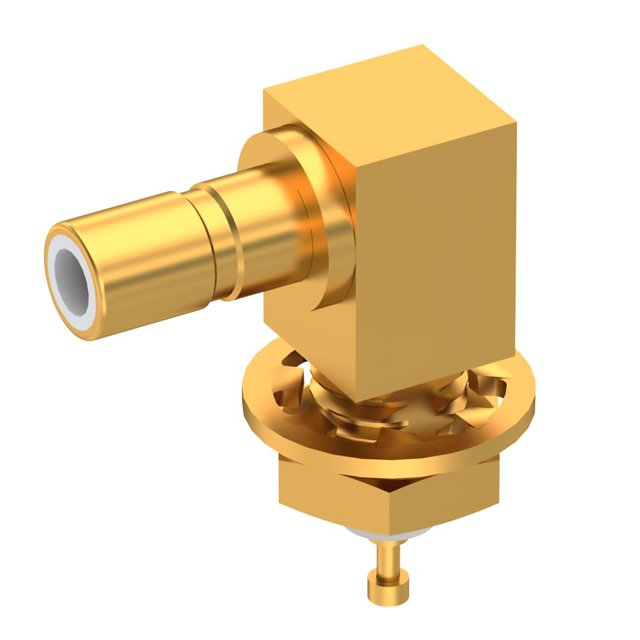

7212-1511 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SSMB / RIGHT ANGLE JACK RECEPTAC
| Part | Voltage Rating | Mating Cycles | Center Contact Plating | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Body Material | Housing Color | Number of Ports | Shield Termination | Impedance | Connector Type | Connector Style | Fastening Type | Center Contact Material | Mounting Feature | Mounting Type | Contact Termination | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 250 V | 500 | Gold | Gold | -65 ░C | 165 °C | Polytetrafluoroethylene (PTFE) | Brass | Gold | 1 | Solder | 50 Ohms | Jack Male Pin | SSMB | Snap-On | Beryllium Copper | Bulkhead - Rear Side Nut | Panel Mount Right Angle | Turret | 12.4 GHz |
