002664 Series

Manufacturer: Molex

Catalog

CONN HEADER R/A 3POS 3.96MM

Part	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Mounting Type	Style	Connector Type	Termination	Contact Shape	Contact Finish - Post	Number of Rows	Number of Positions Loaded	Features	Contact Length - Post	Contact Length - Post	Shrouding	Contact Material	Insulation Height	Insulation Height	Pitch - Mating	Pitch - Mating	Contact Type	Insulation Material	Fastening Type	Insulation Color	Contact Length - Mating	Contact Length - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Overall Contact Length	Overall Contact Length	Contact Length - Post

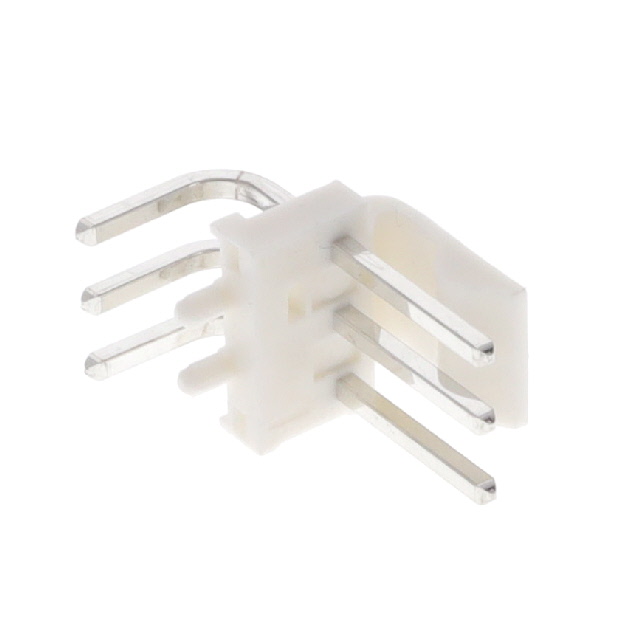

Molex 0026645030	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Right Angle Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.96 mm	0.156 "	Shrouded - 1 Wall	Brass	10 mm	0.394 "	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám

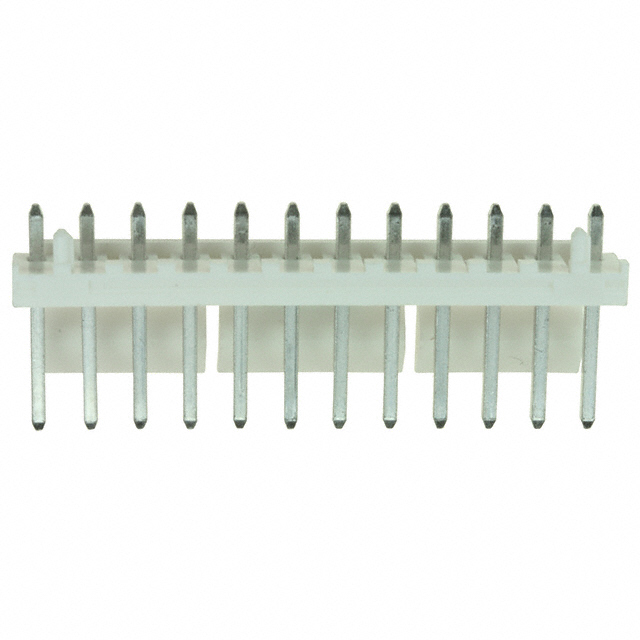

Molex 0026644120	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.56 mm		Shrouded - 1 Wall	Brass	11.33 mm	0.446 in	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	12	0.72 in	18.29 mm	0.14 in

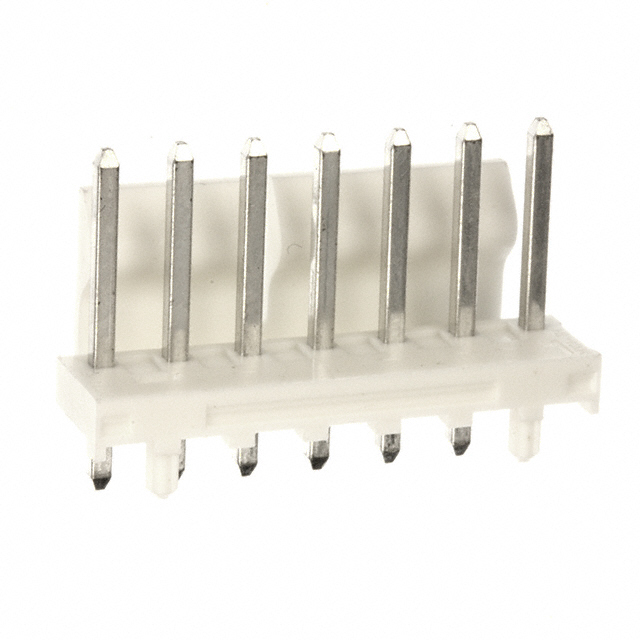

Molex 0026644070	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.56 mm		Shrouded - 1 Wall	Brass	11.33 mm	0.446 in	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	7	0.72 in	18.29 mm	0.14 in
Molex 0026645120	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Right Angle Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.96 mm	0.156 "	Shrouded - 1 Wall	Brass	10 mm	0.394 "	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	12
Molex 0026645110	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Right Angle Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.96 mm	0.156 "	Shrouded - 1 Wall	Brass	10 mm	0.394 "	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	11

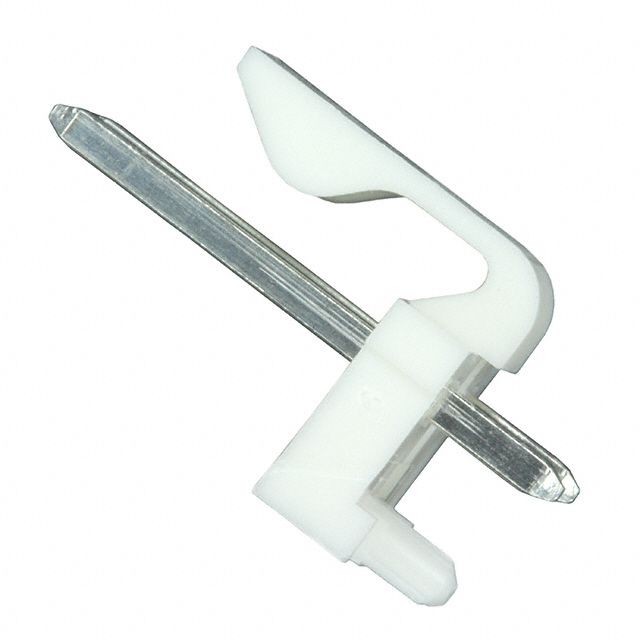

Molex 0026644020	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.56 mm		Shrouded - 1 Wall	Brass	11.33 mm	0.446 in	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	2	0.72 in	18.29 mm	0.14 in

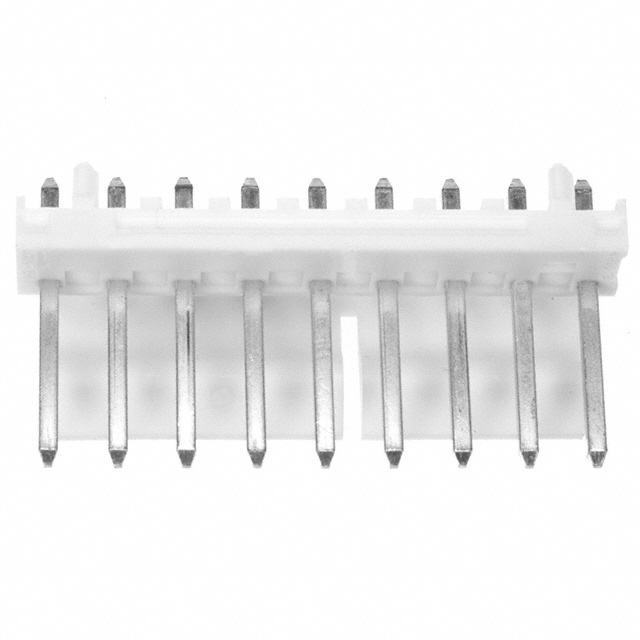

Molex 0026644090	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.56 mm		Shrouded - 1 Wall	Brass	11.33 mm	0.446 in	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	9	0.72 in	18.29 mm	0.14 in

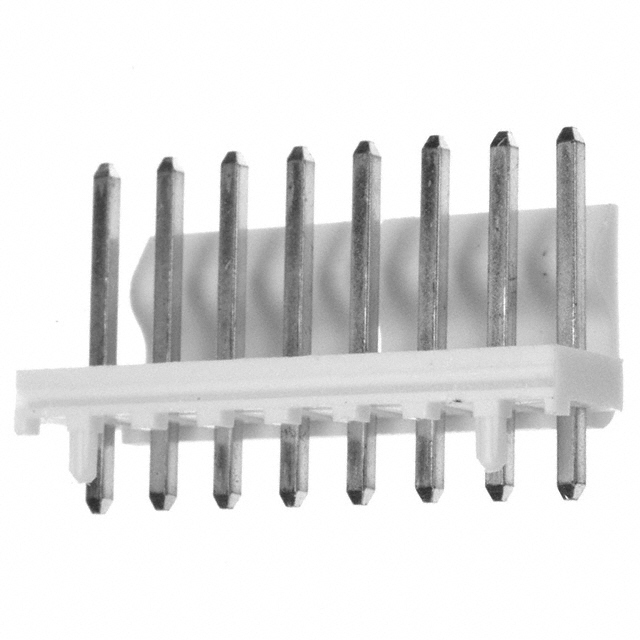

Molex 0026644080	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.56 mm		Shrouded - 1 Wall	Brass	11.33 mm	0.446 in	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	8	0.72 in	18.29 mm	0.14 in

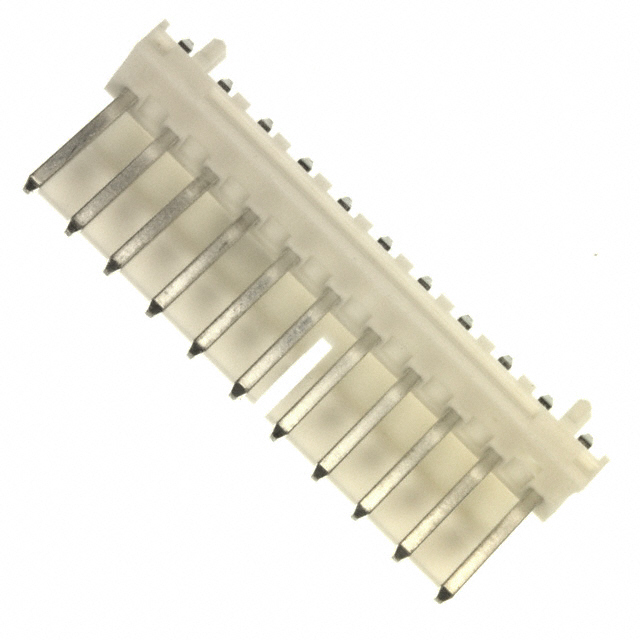

Molex 0026644110	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.56 mm		Shrouded - 1 Wall	Brass	11.33 mm	0.446 in	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	11	0.72 in	18.29 mm	0.14 in

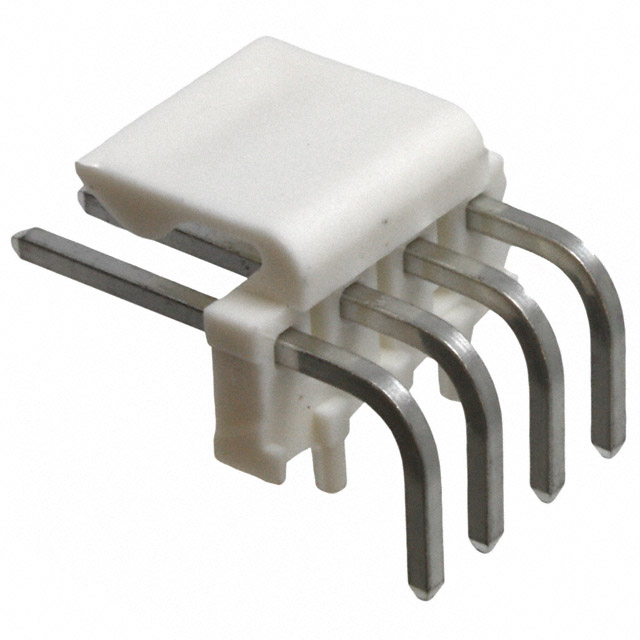

Molex 0026645040	Automotive General Purpose Industrial Medical Telecommunications	1.52 µm	60 µin	UL94 V-0	Right Angle Through Hole	Board to Board Cable	Header	Solder	Square	Tin	1	All	Board Guide	3.96 mm	0.156 "	Shrouded - 1 Wall	Brass	10 mm	0.394 "	3.96 mm	0.156 in	Male Pin	Polyester	Friction Lock	Natural	11.43 mm	0.45 in	60 µin	1.52 Ám	4
