PM20C03HB Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

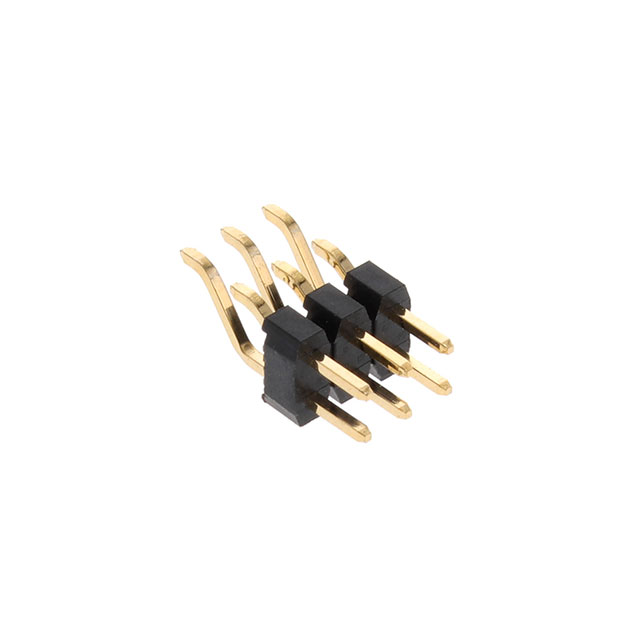

PIN HEADER, SMT, DUAL ROW, 2.00
| Part | Number of Positions Loaded | Contact Type | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Contact Shape | Contact Finish - Mating | Insulation Material | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Finish Thickness - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Insulation Color | Mounting Type | Number of Positions | Insulation Height [z] | Insulation Height [z] | Termination | Fastening Type | Contact Material | Connector Type | Pitch - Mating | Pitch - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | All | Male Pin | 2 | 2 mm | 0.079 in | Square | Gold | Polyethylene | 0.12 in | 3.05 mm | Unshrouded | Flash | -40 C | 105 ░C | Black | Right Angle Surface Mount | 6 | 2 mm | 0.079 in | Solder | Push-Pull | Copper Zinc | Header | 0.079 " | 2 mm |
