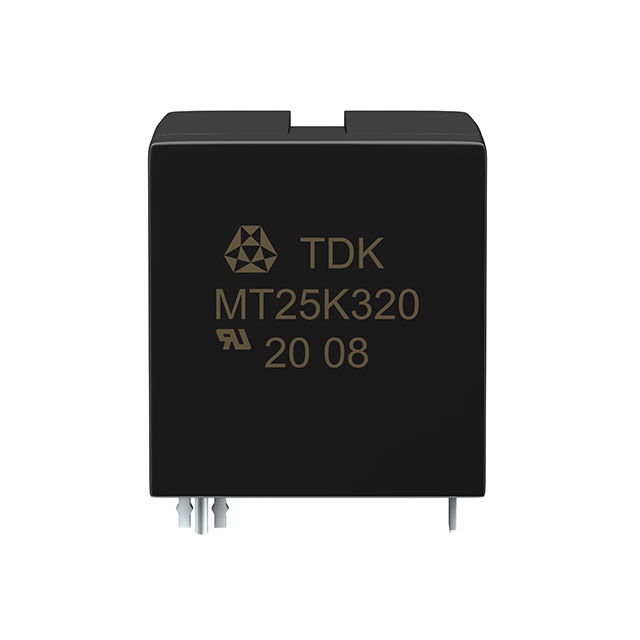

B72225M Series

Catalog

25MM, 320V, 20KA, THERMO FUSE TY

Part	Package / Case	Varistor Voltage (Typ)	Varistor Voltage (Max) [Max]	Maximum DC Volts [Max]	Maximum AC Volts [Max]	Current - Surge	Capacitance @ Frequency	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Energy	Number of Circuits	Varistor Voltage (Min) [Min]	Varistor Voltage (Max)
EPCOS - TDK Electronics B72225M0321M201	Box 4 Lead	510 V	561 V	420 V	320 V	20 kA	1090 pF	85 C	-40 ¯C	Through Hole	445 J	1	459 V
EPCOS - TDK Electronics B72225M0321M301	Box 3 Lead	510 V	561 V	420 V	320 V	20 kA	1090 pF	85 C	-40 ¯C	Through Hole	445 J	1	459 V
EPCOS - TDK Electronics B72225M0381M301	Box 3 Lead	620 V		505 V	385 V	20 kA	900 pF	85 C	-40 ¯C	Through Hole	600 J	1	558 V
EPCOS - TDK Electronics B72225M0271M201	Box 4 Lead	430 V		350 V	275 V	20 kA	1320 pF	85 C	-40 ¯C	Through Hole	375 J	1	387 V	473 V
EPCOS - TDK Electronics B72225M0151M301	Box 3 Lead	240 V	264 V	200 V	150 V	20 kA	1 kHz 2370 pF	85 C	-40 ¯C	Through Hole	215 J	1	216 V
EPCOS - TDK Electronics B72225M0271M301	Box 3 Lead	430 V		350 V	275 V	20 kA	1320 pF	85 C	-40 ¯C	Through Hole	375 J	1	387 V	473 V
EPCOS - TDK Electronics B72225M0151M201	Box 4 Lead	240 V	264 V	200 V	150 V	20 kA	1 kHz 2370 pF	85 C	-40 ¯C	Through Hole	215 J	1	216 V
EPCOS - TDK Electronics B72225M0381M201	Box 4 Lead	620 V		505 V	385 V	20 kA	900 pF	85 C	-40 ¯C	Through Hole	600 J	1	558 V
