ANT-868 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

ANTENNA 1/2 WAVE WHIP SWIVEL 868MHZ RPS

Part	Gain	Applications	Antenna Type	RF Family/Standard	Height (Max) [z]	Height (Max) [z]	Number of Bands	Frequency Range [Max]	Frequency Range [Min]	Termination	Frequency Group [Max]	Frequency Group	Frequency Group [Min]	Mounting Type	VSWR	Ingress Protection	Height (Max) [Max] [z]	Features	Frequency (Center/Band)	Height (Max) [Max] [z]	Power - Max [Max]	Height (Max) [z]	Return Loss	Termination
TE Connectivity AMP Connectors ANT-868-CW-HWR-RPS	-2.3 dBi	ISM LoRa Sensor Networks Sigfox	Tilt Whip	General ISM	5.591 in	142 mm	1	883 MHz	853 MHz	RP-SMA Male	1 GHz	UHF	300 MHz	Connector Mount	2

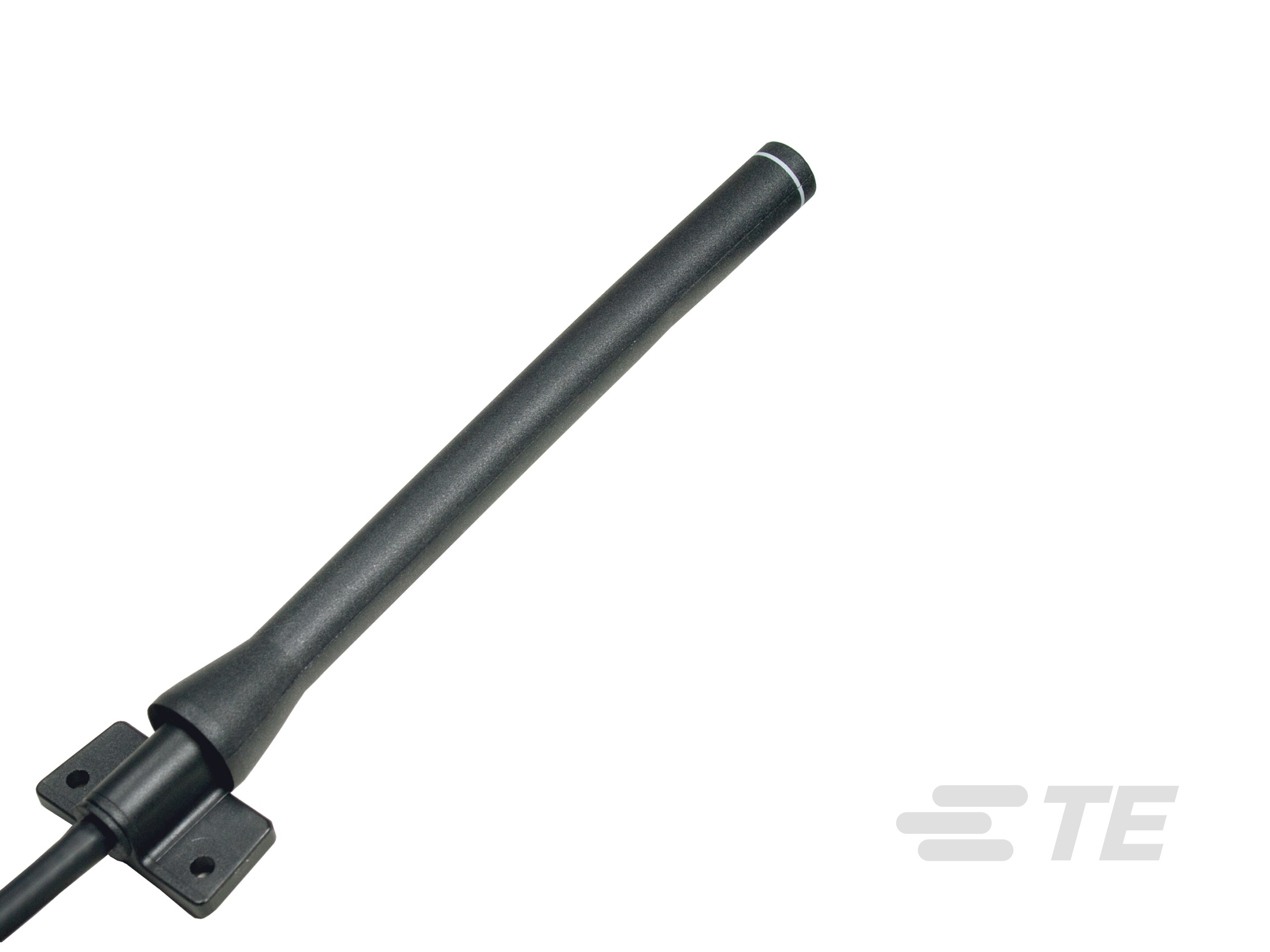

TE Connectivity AMP Connectors ANT-868-ID-2000-SMA	0.6 dBi	ISM LoRa Sensor Networks Sigfox	Whip Straight	General ISM		124.6 mm	1	898 MHz	848 MHz		1 GHz	UHF	300 MHz	Bracket Mount	1.9	IP67	4.906 in	Cable - 2m
TE Connectivity AMP Connectors ANT-868-SP	1.1 dBi	ISM LoRa Sensor Networks Sigfox	Chip	General ISM	0.059 in	1.5 mm	1	885 MHz	850 MHz	Solder	1 GHz	UHF	300 MHz	Surface Mount	1.9

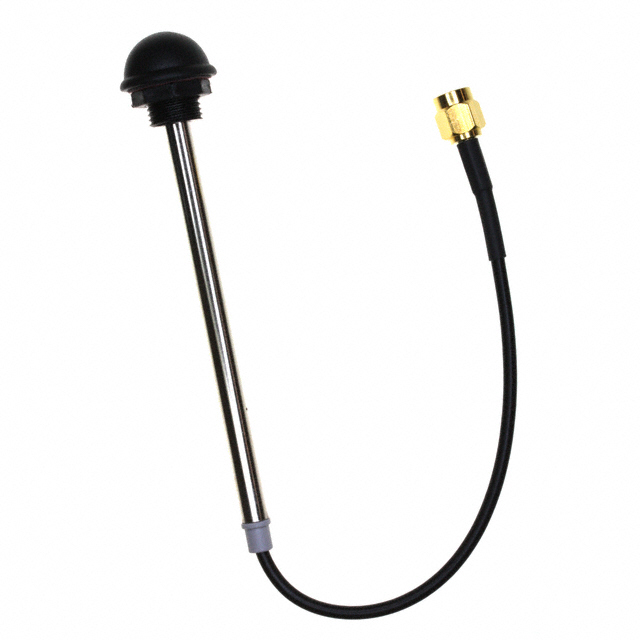

TE Connectivity AMP Connectors ANT-868-WRT-SMA	1.5 dBi	ISM LoRa Sensor Networks Sigfox	Dome	General ISM			1	880 MHz	855 MHz		1 GHz	UHF	300 MHz	Panel Mount	1.9		0.433 in	Cable - 216mm	800 MHz 850 MHz	11 mm

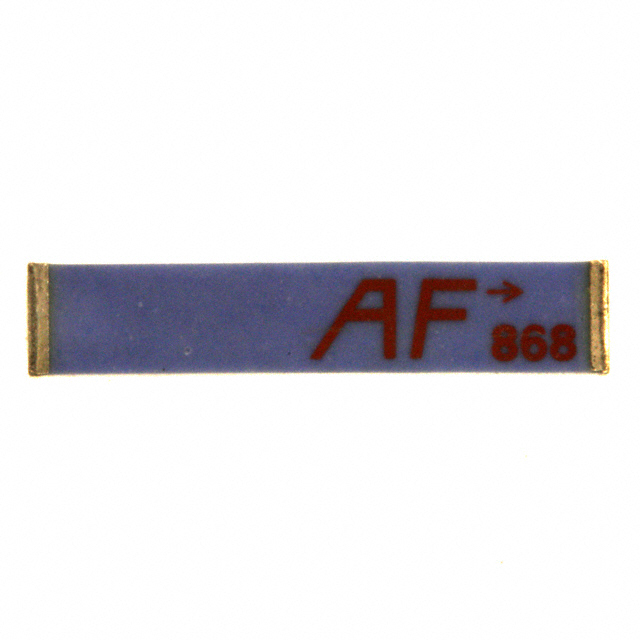

TE Connectivity AMP Connectors ANT-868-CHP-T	0.5 dBi	ISM LoRa Sensor Networks Sigfox	Chip	General ISM		0.067 in	1	873 MHz	863 MHz	Solder	1 GHz	UHF	300 MHz	Surface Mount	2						3 W	1.7 mm
TE Connectivity AMP Connectors ANT-868-CW-HD-SMA	-3 dBi	ISM LoRa Sensor Networks Sigfox	Whip Straight	General ISM		75 mm	1	900 MHz	820 MHz		1 GHz	UHF	300 MHz	Connector Mount	2		2.953 in
TE Connectivity AMP Connectors ANT-868-PW-RA	4 dBi	ISM LoRa Sensor Networks Sigfox	Tilt Whip	General ISM	3.898 in	99 mm	1	960 MHz	780 MHz	Screw-Mount	1 GHz	UHF	300 MHz	Panel Mount	1.9

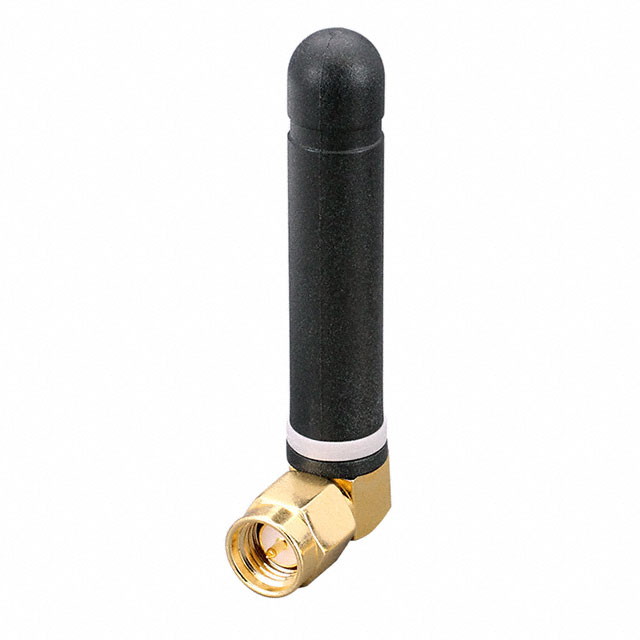

TE Connectivity AMP Connectors ANT-868-CW-RAH-SMA	0.6 dBi	ISM LoRa Sensor Networks Sigfox	Right Angle Whip	General ISM	1.85 in	47 mm	1	903 MHz	833 MHz		1 GHz	UHF	300 MHz	Connector Mount	1.9

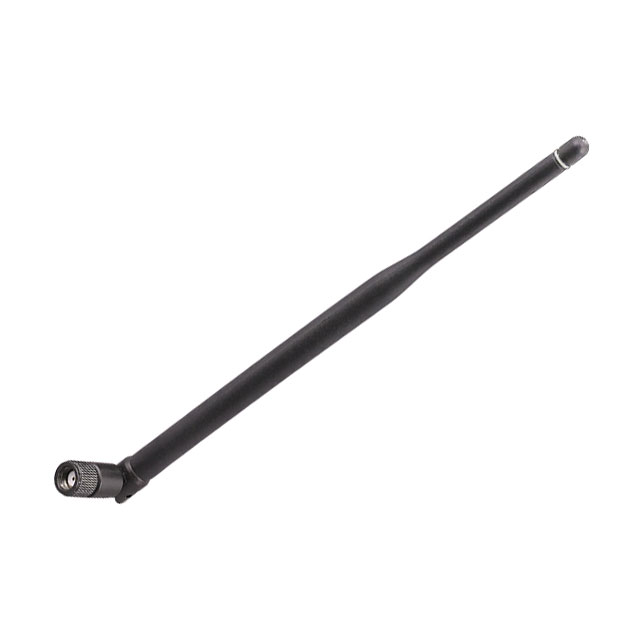

TE Connectivity AMP Connectors ANT-868-OC-LG-RPS	0.4 dBi	ISM LPWA	Tilt Whip	General ISM		193.5 mm	1	876 MHz	862 MHz	RP-SMA Female	1 GHz	UHF	300 MHz	Connector Mount	2.3		7.62 in				10 W		8.1 dB

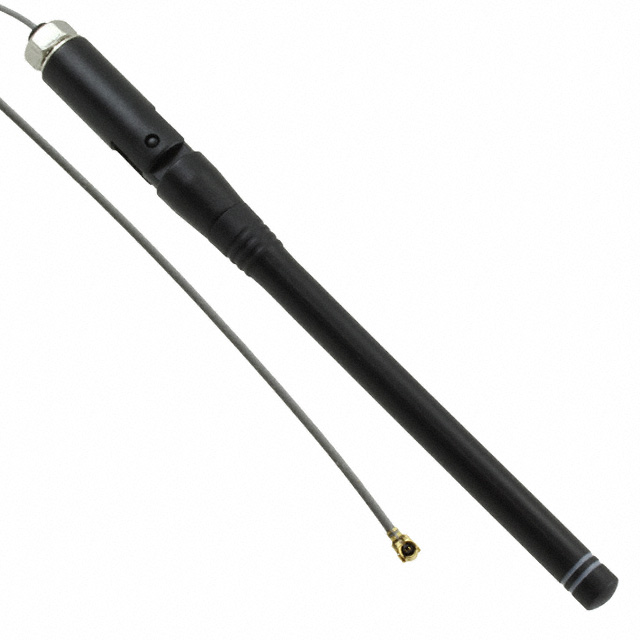

TE Connectivity AMP Connectors ANT-868-PML-UFL	-2 dBi	ISM LoRa Sensor Networks Sigfox	Tilt Whip	General ISM	5.917 in	150.3 mm	1	883 MHz	853 MHz	I-PEX MHF1 U.FL (UMCC)	1 GHz	UHF	300 MHz	Panel Mount	1.9			Cable - 305mm						IPEX MHF1
