ITRF Series
Manufacturer: SCHURTER Inc.
Beta
⌘K

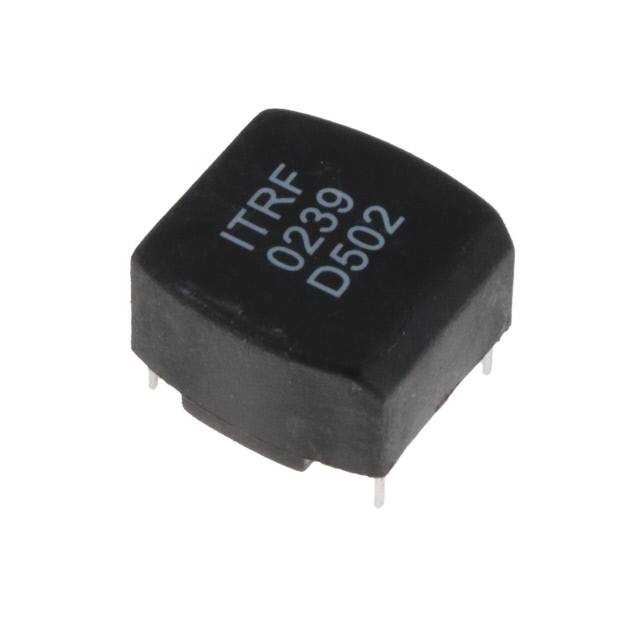

ITRF PULSE TRANSFORMER THT 0.1A
| Part | Weight [diameter] | Weight [diameter] | Mounting Type | Inductance | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Turns Ratio - Primary:Secondary [custom] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Transformer Type | Operating Temperature [Max] | Operating Temperature [Min] | Weight | Weight | ET (Volt-Time) | Weight [custom] | Weight [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SCHURTER Inc. | 0.32 oz | 9.12 g | Through Hole | 1200 µH | 1 | 1 | 1 | 18.2 mm | 0.717 in | 17.8 mm | 0.701 in | 0.512 " | 13 mm | Isolation and Data Interface (Encapsulated) | 100 °C | -25 °C | |||||
 SCHURTER Inc. | Through Hole | 1.6 mH | 1 | 1 | 1 | 22.7 mm | 0.894 in | 22.3 mm | 0.878 " | SCR and Triac Trigger (Encapsulated) | 100 °C | -25 °C | 0.352 oz | 9.97 g | 350 Vµs | ||||||
 SCHURTER Inc. | Through Hole | 1.1 mH | 1 | 1 | 1 | 15.2 mm | 0.598 in | 13 mm | 0.512 " | 0.417 in | 10.6 mm | SCR and Triac Trigger (Encapsulated) | 100 °C | -25 °C | 150 VµS | 0.29 oz | 8.22 g |
