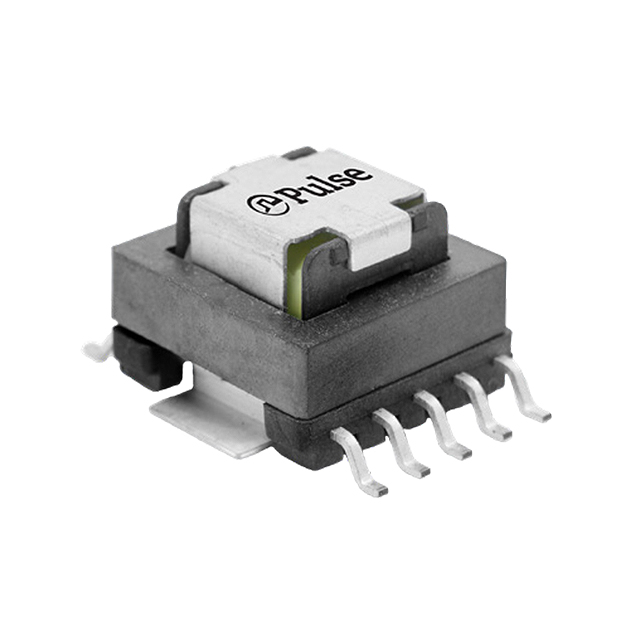

PB002XNL Series

Catalog

CURRENT TRANSFORMERS SMD CURRENT SENSE 22400UH 2.9OHMS

Part	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Type	Termination Style	Mounting Type	Frequency Range [Min]	Frequency Range [Max]	Turns Ratio - Primary:Secondary [custom]	Turns Ratio - Primary:Secondary [custom]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	DC Resistance (DCR) [custom]	DC Resistance (DCR) [custom]	Inductance	Current Rating (Amps)
Pulse Electronics PB0027NLT	19.91 mm	0.784 "	0.591 in	15 mm	Invasive	Gull Wing	Surface Mount	50 kHz	500 kHz	1	200	10 mm	0.394 in	0.42 mOhm	2.9 Ohm	22.4 mH	35 A
Pulse Electronics PB0027NL	19.91 mm	0.784 "	0.591 in	15 mm	Invasive	Gull Wing	Surface Mount	50 kHz	500 kHz	1	200	10 mm	0.394 in	0.42 mOhm	2.9 Ohm	22.4 mH	35 A
