CIGW Series

Catalog

POWER INDUCTORS - SMD 1.2UH, +/-20%, 1616, L TYPE, WIRE WOUND

Part	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Size / Dimension [custom]	Inductance	DC Resistance (DCR) [Max]	Supplier Device Package	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Material - Core	Type	Inductance Frequency - Test	Current Rating (Amps)	Current - Saturation (Isat)	Tolerance	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Supplier Device Package	Package / Case	DC Resistance (DCR)	Supplier Device Package
Samsung Electro-Mechanics CIGW404020KM1R2MLF	1515 (4040 Metric) Nonstandard	1.2 mm	0.047 "	4.1 mm	3.8 mm	0.15 "	0.161 "	1.2 µH	16.5 mOhm	1515	Shielded	125 °C	-40 C	Surface Mount	Metal Composite	Wirewound	1 MHz	8.5 A	7.7 A	20 %
Samsung Electro-Mechanics CIGW201610GLR47MLE	0806 (2016 Metric)							470 nH	26 mOhm		Shielded	125 °C	-40 C	Surface Mount	Metal Composite	Drum Core Wirewound	1 MHz	5.3 A	5 A	20 %	1.6 mm	0.079 in	0.063 "	2 mm	0.039 in	1 mm	0806 (2016 Metric)

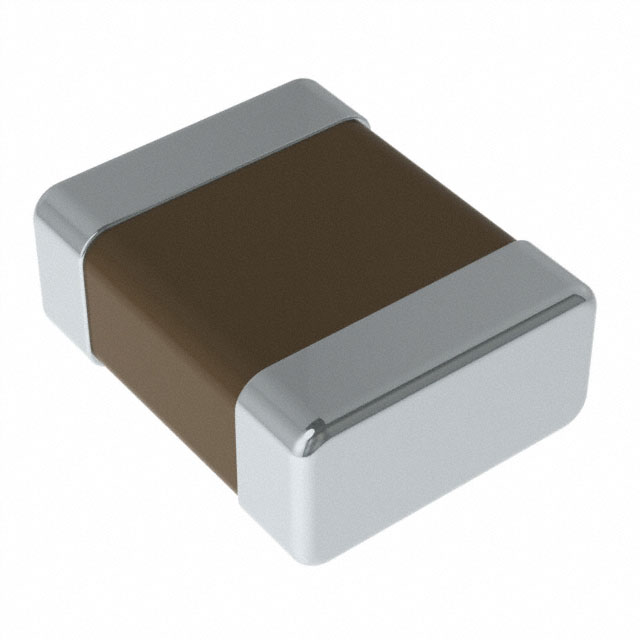

Samsung Electro-Mechanics CIGW252010EH4R7MNE	1008							4.7 ÁH			Shielded	125 °C	-40 C	Surface Mount	Metal Composite	Drum Core Wirewound	1 MHz	1.4 A	2.2 A	20 %	2 mm	0.098 in	0.079 in	2.5 mm	0.039 in	1 mm	1008	2520 Metric	150 mOhm	2520 Metric
