9081-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

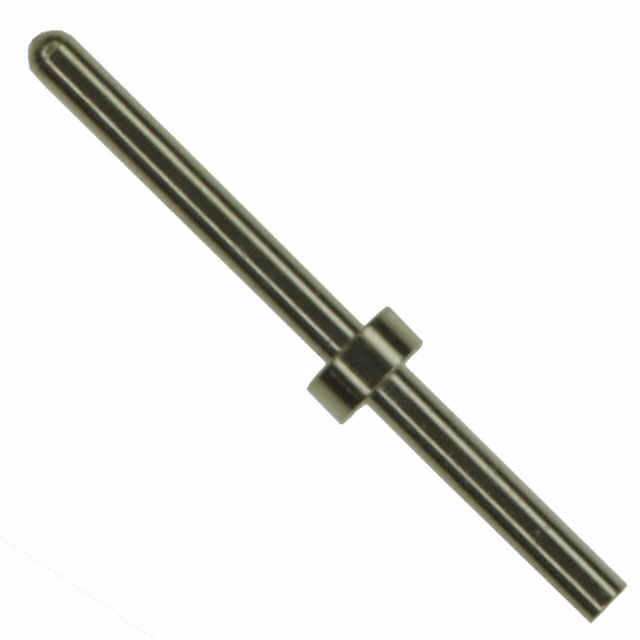

CONN PC PIN CIRC 0.020DIA GOLD
| Part | Terminal Style | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Type | Contact Material | Length - Above Flange | Length - Above Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Length - Overall | Length - Overall [x] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Single End | 0.61 mm | 0.024 in | PC Pin | Brass Alloy | 4.32 mm | 0.17 in | 0.25 Ám | 10 Áin | Non-Insulated | 0.02 in | 0.51 mm | Gold | 0.045 in | 1.14 mm | 0.125 " | 3.18 mm | 0.02 in | 0.51 mm | Through Hole | 8 mm | 0.315 in | Solder |
