TPS92641 Series
Manufacturer: Texas Instruments
Beta
⌘K
SYNCHRONOUS BUCK CONTROLLERS FOR PRECISION DIMMING LED DRIVE WITH SHUNT-FET DRIVER
| Part | Topology | Mounting Type | Internal Switch(s) | Supplier Device Package | Frequency | Dimming | Voltage - Supply (Max) [Max] | Voltage - Supply (Min) [Min] | Grade | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Package / Case | Package / Case [custom] | Package / Case [custom] | Type | Voltage - Input [Min] | Voltage - Input [Max] | Utilized IC / Part | Outputs and Type | Current - Output / Channel | Contents | Voltage - Output [Min] | Voltage - Output [Max] | Features | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | Step-Down (Buck) | Surface Mount | 16-HTSSOP | 1 MHz | Analog PWM | 85 V | 7 V | Automotive | -40 C | 125 °C | 1 | 16-PowerTSSOP | 4.4 mm | 0.173 in | DC DC Controller | |||||||||||

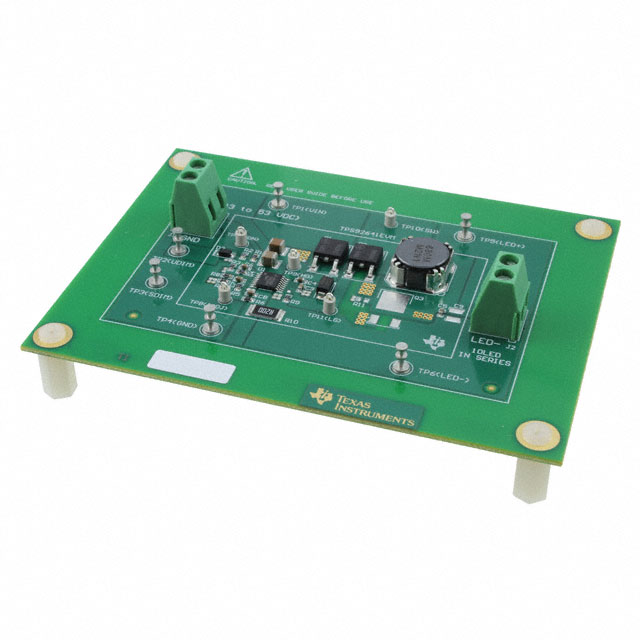

 Texas Instruments | 43 VDC | 53 V | TPS92641 | 1 Non-Isolated Output | 1 A | Board(s) | 32 V | 33 V | Dimmable | |||||||||||||||||
 Texas Instruments | Step-Down (Buck) | Surface Mount | 16-HTSSOP | 1 MHz | Analog PWM | 85 V | 7 V | Automotive | -40 C | 125 °C | 1 | 16-PowerTSSOP | 4.4 mm | 0.173 in | DC DC Controller | Lighting | ||||||||||
Texas Instruments | Step-Down (Buck) | Surface Mount | 16-HTSSOP | 1 MHz | Analog PWM | 85 V | 7 V | Automotive | -40 C | 125 °C | 1 | 16-PowerTSSOP | 4.4 mm | 0.173 in | DC DC Controller |
