GG Series
Manufacturer: KYOCERA AVX
Beta
⌘K

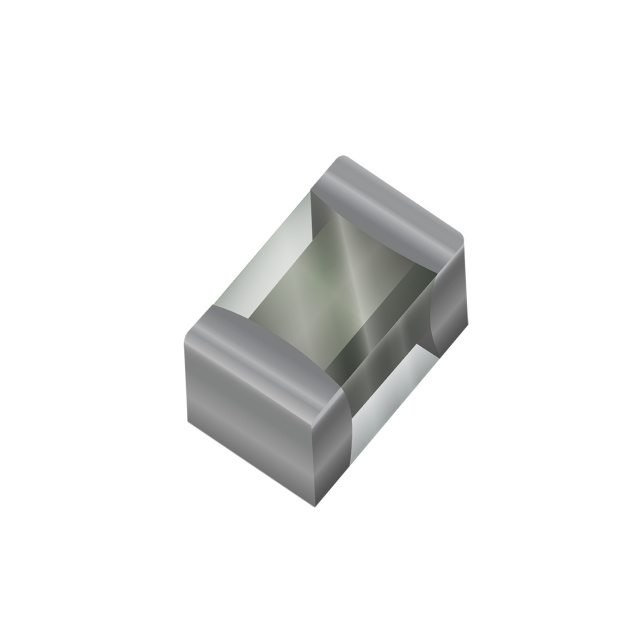

ESD PROTECTION DIODES / TVS DIODES SMP DIODE 0402 7V 10 PF <10V CLAMP@1A
| Part | Current - Peak Pulse (10/1000µs) | Power Line Protection | Mounting Type | Voltage - Breakdown (Min) [Min] | Bidirectional Channels [custom] | Voltage - Reverse Standoff (Typ) | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Applications | Power - Peak Pulse | Voltage - Clamping (Max) @ Ipp [Max] | Type | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 6 A | Surface Mount | 9 V | 1 | 7 V | 0402 | 125 °C | -55 °C | 0402 (1005 Metric) | Ethernet HDMI USB | 72 W | 13 V | Zener | ||
 KYOCERA AVX | 6 A | Surface Mount | 18 V | 1 | 12 V | 0402 | 125 °C | -55 °C | 0402 (1005 Metric) | Ethernet HDMI USB | 130 W | 22 V | Zener | ||
KYOCERA AVX | 8 A | Surface Mount | 7.5 V | 1 | 5 V | 125 °C | -55 °C | 0603 | Ethernet HDMI USB | 96 W | 12 V | Zener | 1608 Metric | ||
 KYOCERA AVX | 15 A | Surface Mount | 1 | 5 V | 0402 | 125 °C | -55 °C | 0402 (1005 Metric) | Ethernet HDMI USB | 300 W | 12 V | Zener |
