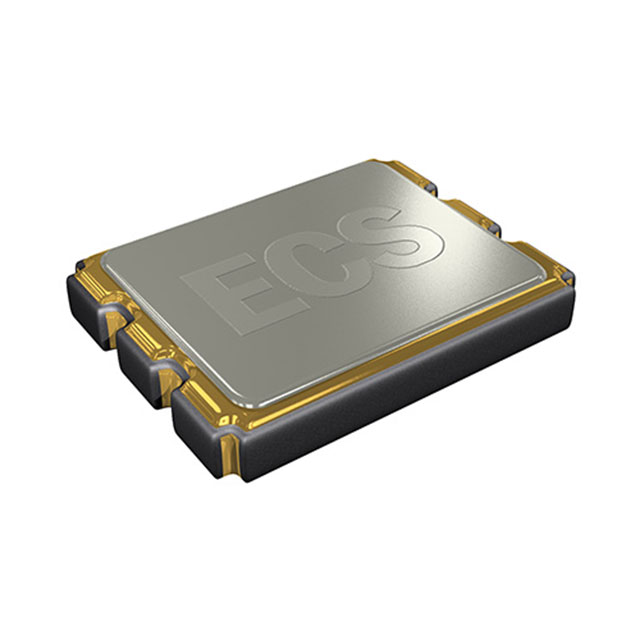

ECS-TXO-25CSMV Series
Manufacturer: ECS Inc.
Beta
⌘K
TCXO OSCILLATORS MULTIVOLT TCXO,32MHZ,+/-1PPM,1.7V 3.465V,2.5MA,-20 C 70 C, 2.50MM X 2.00MM
| Part | Voltage - Supply [Min] | Voltage - Supply [Max] | Output | Current - Supply (Max) [Max] | Supplier Device Package [y] | Supplier Device Package [x] | Supplier Device Package | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Package / Case | Frequency Stability | Frequency | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Base Resonator [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ECS Inc. | 1.7 V | 3.465 V | Clipped Sine Wave | 2.5 mA | 2 | 2.5 | 4-SMD | 0.039 in | 1 mm | -20 ░C | 70 °C | Surface Mount | 4-SMD No Lead | 1 ppm | 32 MHz | TCXO | 2.5 mm | 0.079 in | 0.098 in | 2 mm | Crystal |
ECS Inc. | 1.7 V | 3.465 V | Clipped Sine Wave | 2.5 mA | 2 | 2.5 | 4-SMD | 0.039 in | 1 mm | -40 C | 85 °C | Surface Mount | 4-SMD No Lead | 1 ppm | 40 MHz | TCXO | 2.5 mm | 0.079 in | 0.098 in | 2 mm | Crystal |
