74HC4053BZ Series

Triple 2-channel analog multiplexer/demultiplexer

Catalog

Triple 2-channel analog multiplexer/demultiplexer

Part	Switch Circuit	Voltage - Supply, Single (V+) [Max]	Voltage - Supply, Single (V+) [Min]	Supplier Device Package	Crosstalk	On-State Resistance (Max) [Max]	Current - Leakage (IS(off)) (Max)	Channel Capacitance (CS(off), CD(off))	Package / Case	Mounting Type	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Number of Circuits	Channel-to-Channel Matching (ΔRon)	Operating Temperature [Max]	Operating Temperature [Min]	Multiplexer/Demultiplexer Circuit	-3db Bandwidth

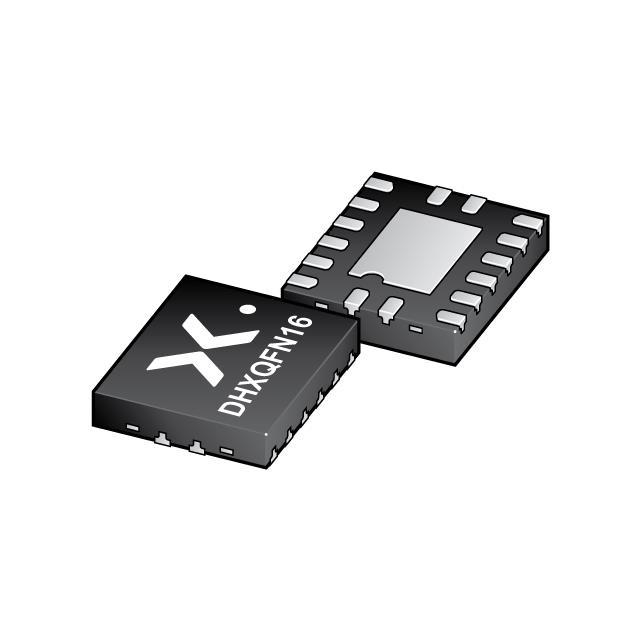

Nexperia USA Inc. 74HC4053BZX	SPDT - Open/Closed	10 V	2 V	16-DHXQFN (2x2.4)	-60 dB	160 Ohms	100 nA	3.5 pF	16-XFQFN Exposed Pad	Surface Mount	36 ns	37 ns	3	8 Ohm	125 °C	-40 °C	2:1	170 MHz

Catalog

Triple 2-channel analog multiplexer/demultiplexer

Description

The 74HC4053; 74HCT4053 is a triple single-pole double-throw analog switch (3x SPDT) suitable for use in analog or digital 2:1 multiplexer/demultiplexer applications. Each switch features a digital select input (Sn), two independent inputs/outputs (nY0 and nY1) and a common input/output (nZ). A digital enable input (E) is common to all switches. WhenEis HIGH, the switches are turned off. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
