7917-15 Series
Manufacturer: Oupiin
Beta
⌘K

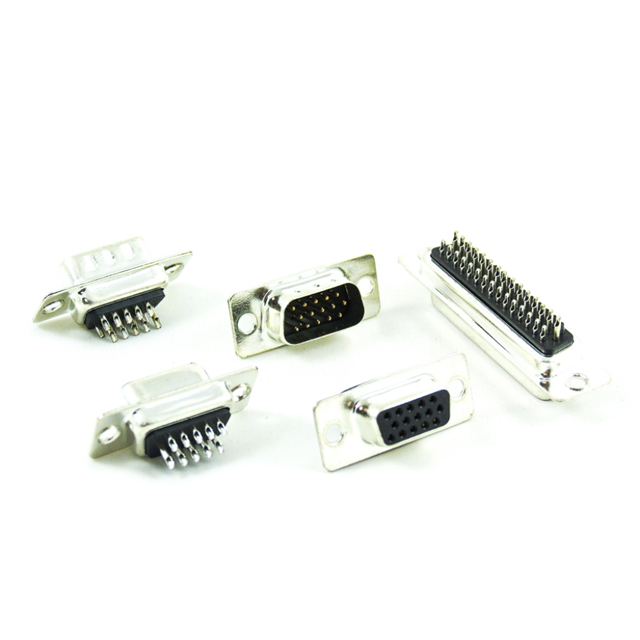

CONN D-SUB HD RCPT 15P SLDR CUP
| Part | Operating Temperature (Min) | Operating Temperature (Max) | Contact Material | Dielectric Material | Color | Shell Size | Connector Layout | Current Rating | Contact Type | Termination | Number of Rows | Contact Finish | Flange Feature | Contact Finish Thickness | Contact Finish Thickness (string set options) | Contact Finish Thickness | Material Flammability Rating | Connector Type | Connector Style | Mounting Type | Finish | Shell Material | Number of Positions | Features | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Oupiin | -55 °C | 105 °C | Brass | Polybutylene Terephthalate (PBT) | Black | 1 | DE E High Density | 1 A | Signal | Solder Cup | 3 | Gold | Housing Shell (Unthreaded) | 0 | Flash | Flash | UL94 V-0 | Female Sockets Receptacle | D-Sub High Density | Free Hanging (In-Line) | Tin Plated | Steel | 15 | ||
Oupiin | -55 °C | 105 °C | Brass | Polybutylene Terephthalate (PBT) | Black | 1 | DE E High Density | 1 A | Signal | Solder Cup | 3 | Gold | Housing Shell (Unthreaded) | 0 | Flash | Flash | UL94 V-0 | Male Pins Plug | D-Sub High Density | Free Hanging (In-Line) | Tin Plated | Steel | 15 | Grounding Indents | Metal |
