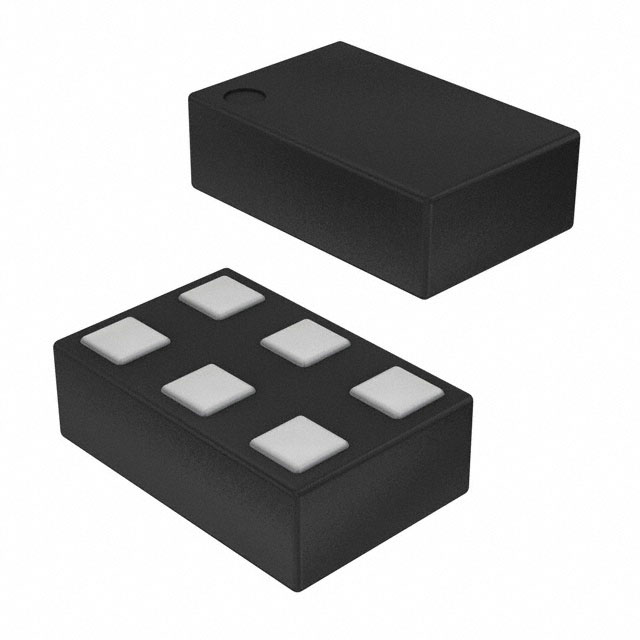

SP1012-05WTG Series
5CH 30KV 5V TVS Diode Array 0402WLCSP
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
5CH 30KV 5V TVS Diode Array 0402WLCSP
Key Features
• RoHS compliant, Halogen-free and lead free
• ESD, IEC 61000-4-2, ±15 kV contact, ±30kV air
• EFT, IEC 61000-4-4,40A (5/50ns)
• Lightning protection, IEC 61000-4-5 2nd Edition, 3.0A (tP=8/20μs)
• Highest density TVS array available today
• 5 channels of protection in a 0.94x0.61mm footprint (i.e. a discrete 0402)
Description
AI
The miniature 5 channel bidirectional TVS array provides protection for data lines that may experience destructive electrostatic discharges (ESD). These robust diodes can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard without performance degradation. The bidirectional configuration provides symmetrical ESD protection for data lines when AC signals are present.
