1571295 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Mechanical Life	Actuator Material	Switch Function	Actuator Type	Circuit	Actuator Orientation	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Ingress Protection	Illumination	Actuator Height off PCB, Vertical [z]	Features	Contact Rating @ Voltage	Outline [y]	Outline [x]	Mounting Type

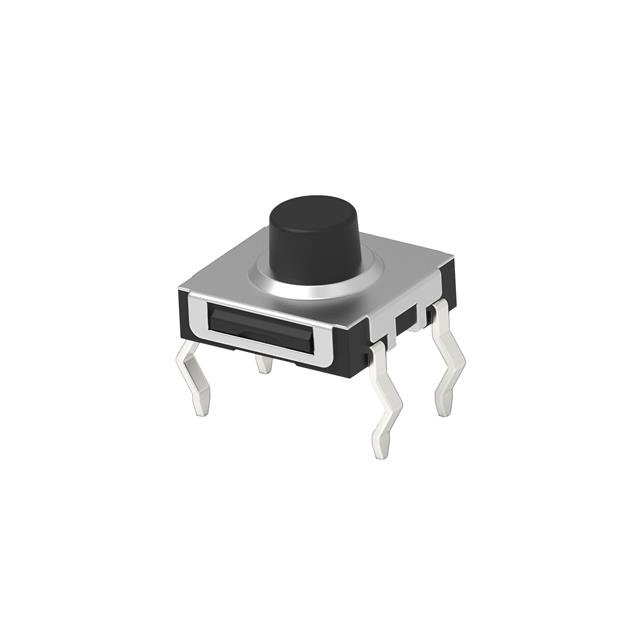

TE Connectivity AMP Connectors 1571295-1	0.35 mm	1000000 Cycles	Thermoplastic	Off-Mom	Standard	SPST-NO	Top Actuated	PC Pin	85 °C	-35 °C	160 gf	IP67 - Dust Tight Waterproof	Non-Illuminated	4.3 mm	Sealed - Fully	0.05 A 24 VDC	7.3 mm	7.6 mm	Through Hole
TE Connectivity AMP Connectors 1571295-2	0.35 mm	1000000 Cycles	Thermoplastic	Off-Mom	Standard	SPST-NO	Top Actuated	PC Pin	85 °C	-35 °C	160 gf	IP67 - Dust Tight Waterproof	Non-Illuminated	5 mm	Sealed - Fully	0.05 A 24 VDC	7.3 mm	7.6 mm	Through Hole
