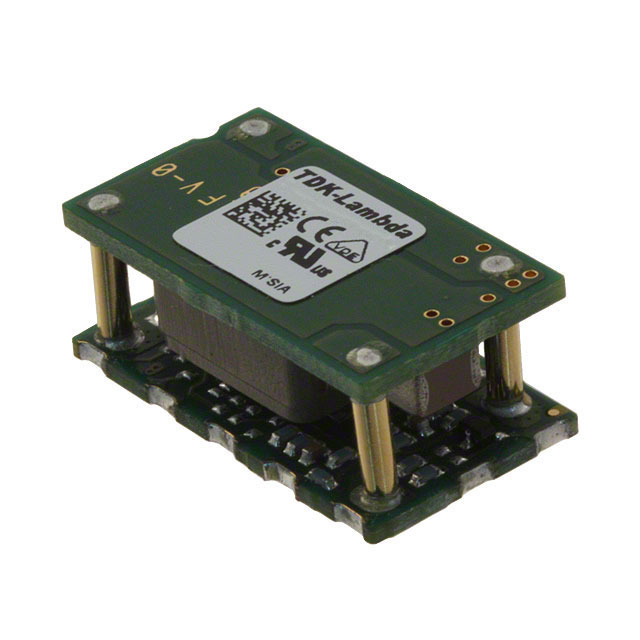

iBF Series

Catalog

NON ISOLATED POL DC/DC CONVERTER, ITE, DOSA, 43.5 W, 600 MV, 3.63 V, 12 A

Part	Efficiency	Voltage - Input (Min) [Min]	Control Features	Package / Case	Number of Outputs	Current - Output (Max) [Max]	Features	Type	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Applications
TDK Corporation IBF05012A006V-007-R	93 %	2.4 V	Active Low Enable	10-SMD Module	1	12 A	OCP Remote On/Off	Non-Isolated PoL Module	Surface Mount	0.8 "	11.4 mm	0.34 in	0.45 in	20.3 mm	8.5 mm	0.6 V	3.63 V	5.5 V	115 °C	-40 C	ITE (Commercial)
