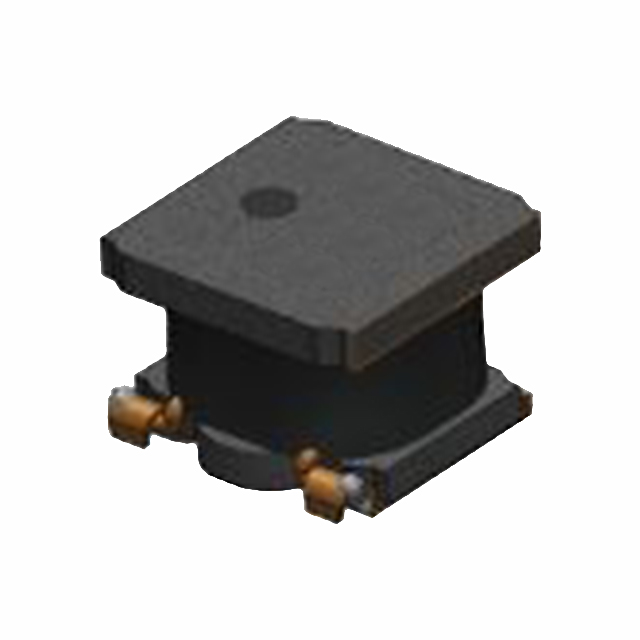

VLS-EX-CA Series

Catalog

POWER INDUCTORS - SMD RECOMMENDED ALT 810-VLS5045EX-4R7M-H

Part	DC Resistance (DCR) [Max]	Type	Inductance Frequency - Test	Current - Saturation (Isat)	Package / Case	Material - Core	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Mounting Type	Shielding	Tolerance	Current Rating (Amps)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]
TDK Corporation VLS5045EX-4R7M-CA	46.8 mOhm	Drum Core Wirewound	100 kHz	4.4 A	Nonstandard	Ferrite	4.5 mm	0.177 in	4.7 ÁH	Surface Mount	Shielded	20 %	3.2 A	0.197 in	0.197 "	5 mm	5 mm	-40 C	105 ░C

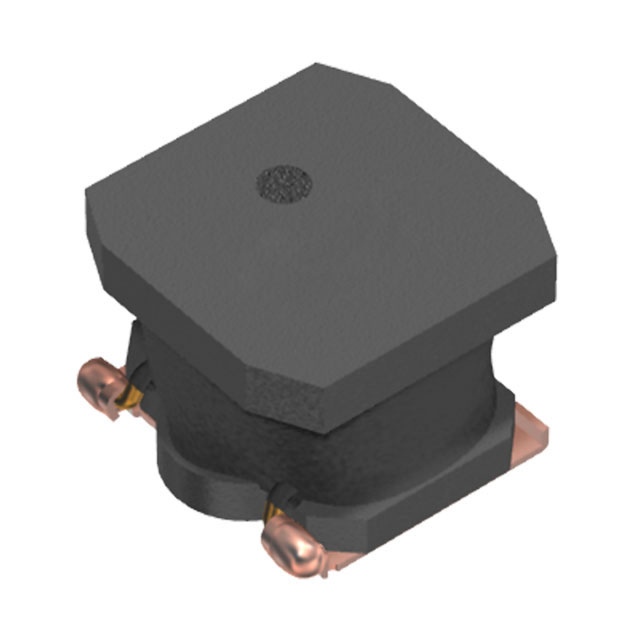

TDK Corporation VLS6045EX-221M-CA	1.495 Ohm	Drum Core Wirewound	100 kHz	800 mA	Nonstandard	Ferrite	4.5 mm	0.177 in	220 µH	Surface Mount	Shielded	20 %	0.5 A	0.236 in	0.236 "	6 mm	6 mm	-40 C	105 ░C
TDK Corporation VLS5045EX-150M-CA	143 mOhm	Drum Core Wirewound	100 kHz	2.2 A	Nonstandard	Ferrite	4.5 mm	0.177 in	15 µH	Surface Mount	Shielded	20 %	1.9 A	0.197 in	0.197 "	5 mm	5 mm	-40 C	105 ░C
TDK Corporation VLS6045EX-3R3N-CA	29.9 mOhm	Drum Core Wirewound	100 kHz	6.5 A	Nonstandard	Ferrite	4.5 mm	0.177 in	3.3 µH	Surface Mount	Shielded	30 %	4.95 A	0.236 in	0.236 "	6 mm	6 mm	-40 C	105 ░C
