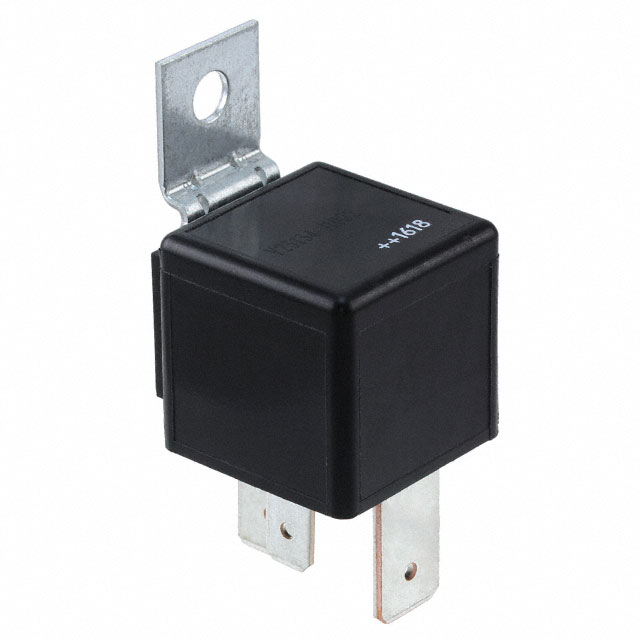

V23134 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
AUTOMOTIVE RELAY, 12 VDC, 50 A, SPST-NO, PANEL MOUNT, QUICK CONNECT, POWER RELAY F7 SERIES
| Part | Coil Resistance | Coil Power | Contact Material | Coil Voltage | Operating Temperature [Max] | Operating Temperature [Min] | Coil Type | Contact Form | Termination Style | Mounting Type | Contact Rating (Current) | Operate Time | Must Operate Voltage | Release Time | Must Release Voltage | Switching Voltage | Coil Current | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 90 Ohms | 1.6 W | Silver Alloy | 12 VDC | 125 °C | -40 C | Non Latching | SPST-NO (1 Form A) | Plug In Quick Connect | Chassis Mount | 70 A | 7 ms | 7.2 VDC | 2 ms | 1.6 VDC | |||
 TE Connectivity AMP Connectors | 79.5 Ohms | 1.8 W | Silver Nickel (AgNi) | 12 VDC | 125 °C | -40 C | Non Latching | SPDT (1 Form C) | Plug In Quick Connect - 0.250" (6.3mm) | Chassis Mount | 40 A | 7 ms | 7.2 VDC | 2 ms | 1.2 VDC | 14 VDC | 151 mA | Resistor |
