MSA Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

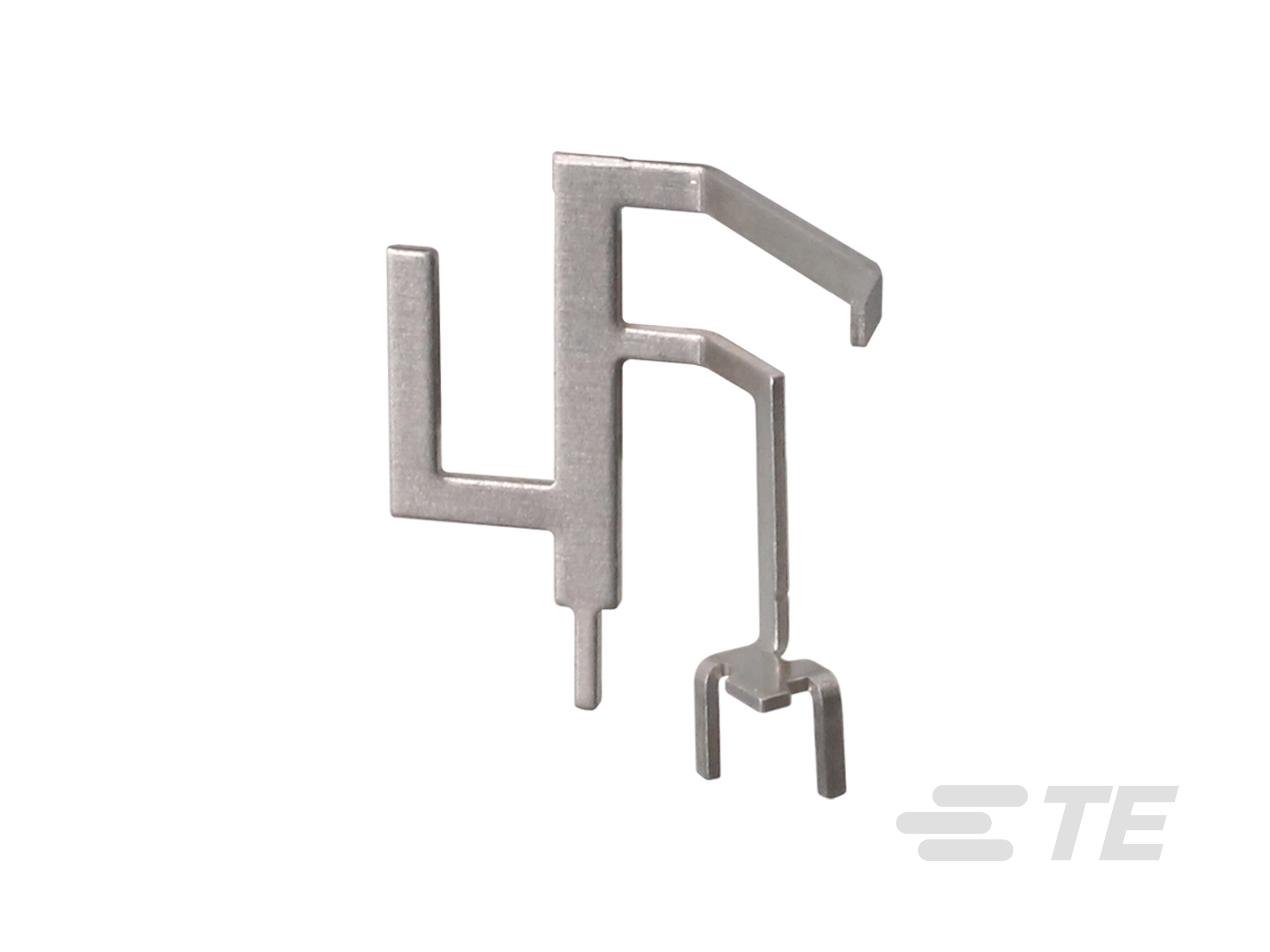

ANTENNAS 2.4/5/6 GHZ WIFI6/6E ANTENNA, STAMPED METAL, THROUGH HOLE MOUNT
| Part | VSWR | Applications | Gain | Number of Bands | Frequency (Center/Band) | Frequency Range [Min] | Frequency Range [Max] | Antenna Type | Termination | Mounting Type | Power - Max [Max] | Frequency Group | Height (Max) [Max] [z] | Height (Max) [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1.9 2.9 3.2 | Bluetooth ISM Wi-Fi WLAN Zigbee™ | 3.5 dBi 3.8 dBi | 3 | 2.45 GHz 5.5225 GHz 6.5375 GHz | 2.4 GHz 5.15 GHz 5.95 GHz | 2.5 GHz 5.895 GHz 7.125 GHz | Stamped Metal | Solder | Surface Mount | 1 W | SHF UHF | 0.728 in | 18.5 mm |
