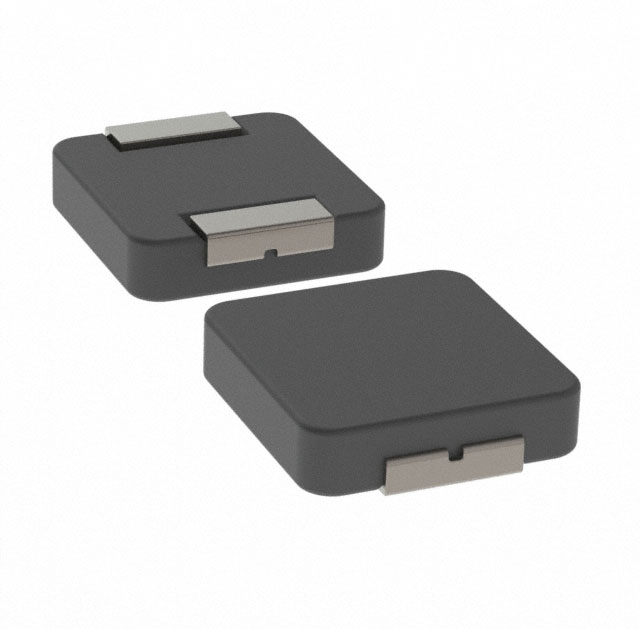

PM4345 Series
Manufacturer: Pulse Electronics
Beta
⌘K
POWER INDUCTORS - SMD 6.8UH 2.4A 2MM AEC-Q200 +/-20%
| Part | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Inductance | Operating Temperature [Min] | Operating Temperature [Max] | Type | Tolerance | Package / Case | DC Resistance (DCR) | Current - Saturation (Isat) | Shielding | Current Rating (Amps) | Inductance Frequency - Test | Mounting Type | Ratings | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Pulse Electronics | 6 mm | 5.4 mm | 0.236 in | 0.213 " | 6.8 µH | -55 C | 125 °C | Molded | 20 % | Nonstandard | 150 mOhm | 3.8 A | Shielded | 2.4 A | 100 kHz | Surface Mount | AEC-Q200 | 0.079 in | 2 mm |
