0ZCN Series

Catalog

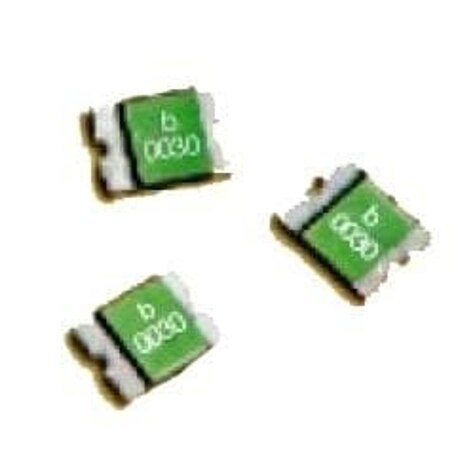

RESETTABLE FUSES - PPTC SMD 2016 SIZE 1.1A 15V

Part	Time to Trip	Current - Max [Max]	Current - Trip (It)	Grade	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Current - Hold (Ih) (Max) [Max]	Resistance - Initial (Ri) (Min) [Min]	Type	Qualification	Voltage - Max [Max]	Mounting Type	Resistance - Post Trip (R1) (Max) [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Approval Agency	Thickness (Max) [Max] [z]	Thickness (Max) [Max] [z]	Thickness (Max)
Bel Fuse Inc. 0ZCN0110FF2C	500 ms	100 A	2.2 A	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	1.1 A	100 mOhms	Polymeric	AEC-Q200	15 V	Surface Mount	400 mOhms	0.7 mm	0.028 in
Bel Fuse Inc. 0ZCN0055FF2A	5 s	100 A	1.1 A	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	550 mA	200 mOhms	Polymeric	AEC-Q200	60 V	Surface Mount	1 Ohms			AEC-Q200 cURus TUV UL	0.067 "	1.7 mm
Bel Fuse Inc. 0ZCN0110AF2C	500 ms	100 A	2.2 A	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	1.1 A	100 mOhms	Polymeric	AEC-Q200	33 V	Surface Mount	400 mOhms	0.7 mm	0.028 in
Bel Fuse Inc. 0ZCN0030FF2C	3 s	100 A	600 mA	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	300 mA		Polymeric	AEC-Q200	60 V	Surface Mount	2.3 Ohms	1.15 mm	0.045 in	AEC-Q200 cURus TUV UL
Bel Fuse Inc. 0ZCN0200FF2C	3 s	100 A	4.2 A	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	2 A	48 mOhms	Polymeric	AEC-Q200	6 V	Surface Mount	100 mOhms		0.022 in				0.55 mm
Bel Fuse Inc. 0ZCN0075FF2A	500 ms	100 A	1.5 A	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	750 mA		Polymeric	AEC-Q200	60 V	Surface Mount	900 mOhms				0.067 "	1.7 mm
Bel Fuse Inc. 0ZCN0150FF2C	800 ms	100 A	3 A	Automotive	0.16 in	5.08 mm	4.07 mm	0.2 in	85 °C	-40 C	2016 (5041 Metric) Concave	1.5 A	70 mOhms	Polymeric	AEC-Q200	15 V	Surface Mount	180 mOhms		0.026 in				0.65 mm
