ISPLSI 1016E Series

Catalog

IC CPLD 64MC 15NS 44TQFP

Part	Supplier Device Package	Number of Gates	Package / Case	Number of Logic Elements/Blocks	Delay Time tpd(1) Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of I/O	Mounting Type	Number of Macrocells	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Programmable Type	Supplier Device Package [x]	Supplier Device Package [y]
Lattice Semiconductor Corporation ISPLSI 1016E-80LT44I	44-TQFP (10x10)	2000	44-TQFP	16	15 ns	85 C	-40 ¯C	32	Surface Mount	64	4.5 V	5.5 V	In System Programmable
Lattice Semiconductor Corporation ISPLSI 1016E-100LT44	44-TQFP (10x10)	2000	44-TQFP	16	10 ns	70 °C	0 °C	32	Surface Mount	64	4.75 V	5.25 V	In System Programmable
Lattice Semiconductor Corporation ISPLSI 1016E-100LTN44	44-TQFP (10x10)	2000	44-TQFP	16	10 ns	70 °C	0 °C	32	Surface Mount	64	4.75 V	5.25 V	In System Programmable
Lattice Semiconductor Corporation ISPLSI 1016E-125LTN44	44-TQFP (10x10)	2000	44-TQFP	16	7.5 ns	70 °C	0 °C	32	Surface Mount	64	4.75 V	5.25 V	In System Programmable

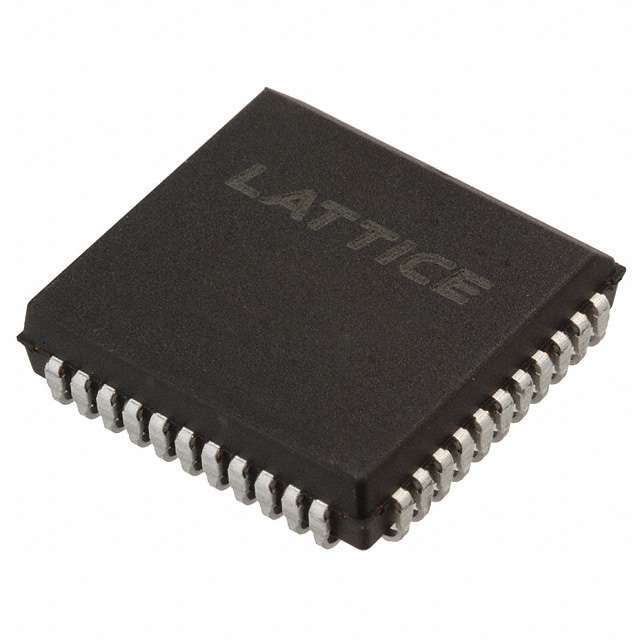

Lattice Semiconductor Corporation ISPLSI 1016E-125LJN	44-PLCC	2000	44-LCC (J-Lead)	16	7.5 ns	70 °C	0 °C	32	Surface Mount	64	4.75 V	5.25 V	In System Programmable	16.59	16.59
Lattice Semiconductor Corporation ISPLSI 1016E-80LT44	44-TQFP (10x10)	2000	44-TQFP	16	15 ns	70 °C	0 °C	32	Surface Mount	64	4.75 V	5.25 V	In System Programmable
