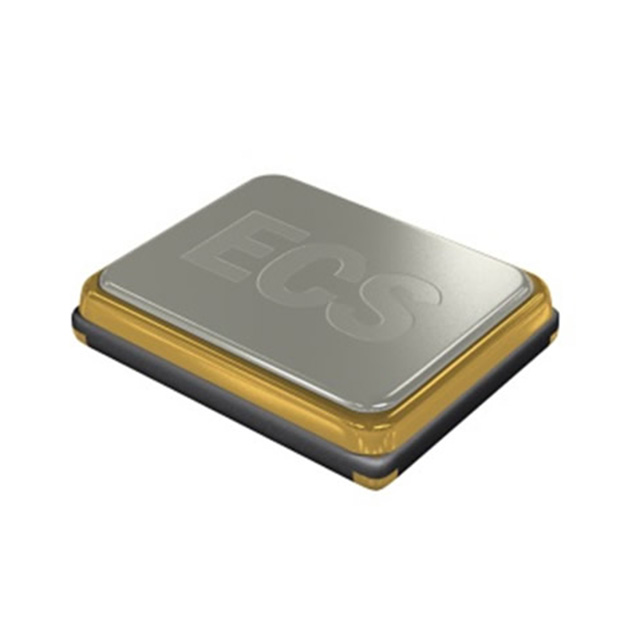

ECX-33B Series

Manufacturer: ECS Inc.

Catalog

CRYSTALS 24MHZ 18PF 40 OHMS -20C TO 70C 7PPM

Part	Frequency Stability	Mounting Type	Operating Mode	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Frequency	ESR (Equivalent Series Resistance)	Type	Package / Case	Load Capacitance	Height - Seated (Max) [Max]	Height - Seated (Max)	Frequency Tolerance	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]
ECS Inc. ECS-240-18-33B-7KM-TR	10 ppm	Surface Mount	Fundamental	-20 ░C	70 °C	3.2	2.5	4-SMD	24 MHz	40 Ohms	MHz Crystal	4-SMD No Lead	18 pF	0.031 in	0.8 mm	7 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "
ECS Inc. ECS-271.2-10-33B-CKM-TR	10 ppm	Surface Mount	Fundamental	-20 ░C	70 °C	3.2	2.5	4-SMD	27.12 MHz	40 Ohms	MHz Crystal	4-SMD No Lead	10 pF	0.031 in	0.8 mm	10 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "
ECS Inc. ECS-270-10-33B-CKM-TR	10 ppm	Surface Mount	Fundamental	-20 ░C	70 °C	3.2	2.5	4-SMD	27 MHz	40 Ohms	MHz Crystal	4-SMD No Lead	10 pF	0.031 in	0.8 mm	10 ppm	2.5 mm	0.098 in	3.2 mm	0.126 "
